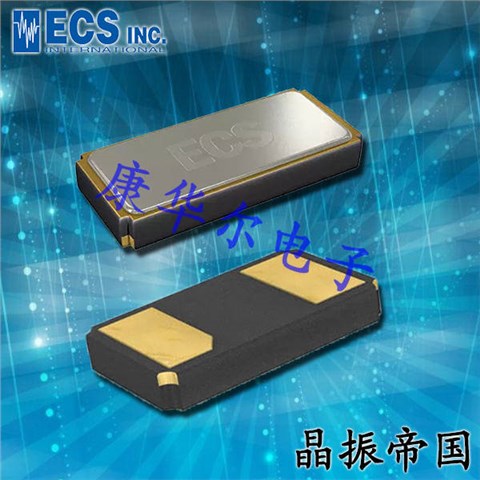

ECS石英晶体ECX-34S,ECS-.327-12.5-34S-TR,工业应用6G晶振，美国进口晶振，ECS伊西斯晶振，型号：ECX-34S，编码为：ECS-.327-12.5-34S-TR，频率为：32.768KHz，小体积晶振尺寸：3.2x1.5x0.9mm封装，两脚贴片晶振，石英晶体谐振器，石英晶振，无源晶振，耐高温晶振，无铅晶振，SMD石英晶体，工作温度范围：-40℃至+125℃。具有超小型，轻薄型，高精度，高性能，高品质，高质量，高稳定性，耐热及耐环境特点。32.768K时钟晶振应用于：可穿戴设备，医疗设备，小型便捷式设备，智能手机，平板电脑，游戏机设备，遥控器，数字显示，钟表电子晶振，仪器仪表设备，数码电子，智能家居等应用。

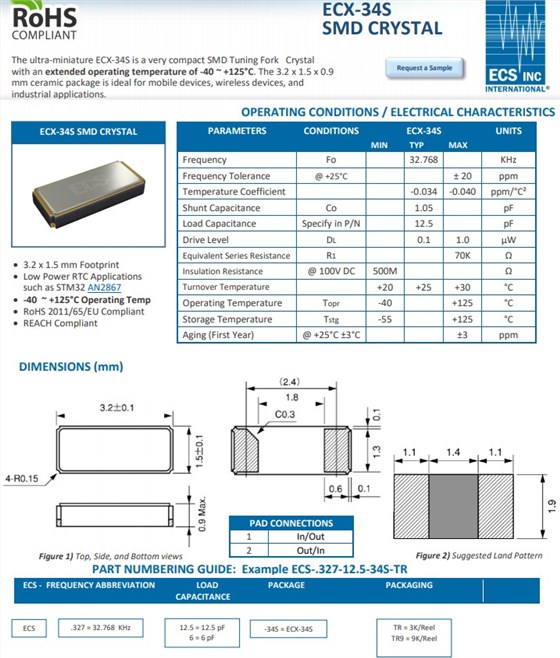

ECS石英晶体ECX-34S,ECS-.327-12.5-34S-TR,工业应用6G晶振 参数表
PARAMETERS
CONDITIONS
ECX-34S
UNITS
MIN
TYP
MAX
Frequency
Fo
32.768
KHz
Frequency Tolerance
@ +25°C
± 20
ppm
Temperature Coefficient
-0.034
-0.040
ppm/°C²
Shunt Capacitance
Co
1.05
pF
Load Capacitance
Specify in P/N
12.5
pF
Drive Level
DL
0.1
1.0
μW
Equivalent Series Resistance
R1
70K
Ω
Insulation Resistance
@ 100V DC
500M
Ω
Turnover Temperature
+20
+25
+30
°C
Operating Temperature
Topr
-40
+125
°C
Storage Temperature
Tstg
-55
+125
°C
Aging (First Year)
@ +25°C ±3°C
±3
ppm

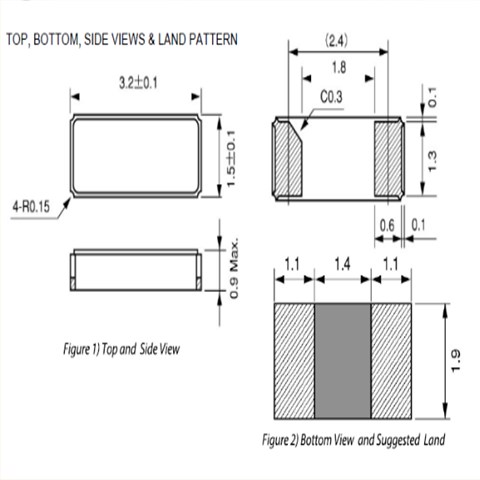

ECS石英晶体ECX-34S,ECS-.327-12.5-34S-TR,工业应用6G晶振 尺寸图
ECS石英晶体ECX-34S,ECS-.327-12.5-34S-TR,工业应用6G晶振
32.768K系列产品本身具有体积小,厚度薄,重量轻等特点,此音叉型石英晶体谐振器,晶振产品本身具备优良的耐热性,耐环境特性,在办公自动化,家电领域,移动通信领域可发挥优良的电气特性,符合无铅标准,满足无铅焊接的回流温度曲线要求,金属外壳的石英晶振使得产品在封装时能发挥比陶瓷晶振外壳更好的耐冲击性能.
| 原厂编码 | 晶振制造商 | 型号 | 频率 | 工作温度 |
| ECS-.327-12.5-39-TR | ECS Crystal | ECX-39 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34QCS-TR | ECS Crystal | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-6-34S-TR | ECS Crystal | ECX-34S | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-12.5-34S-TR | ECS Crystal | ECX-34S | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-7-34QS-TR | ECS Crystal | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-9-34QS-TR | ECS Crystal | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-12.5-34QS-TR | ECS Crystal | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-6-34QS-TR | ECS Crystal | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-9-34R-TR | ECS Crystal | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34R-TR | ECS Crystal | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-34QCS-TR | ECS Crystal | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-7-34QCS-TR | ECS Crystal | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-12.5-34R-C-TR | ECS Crystal | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-34QCS-TR | ECS Crystal | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-1.536-12.5-13 | ECS Crystal | ECS-31 | 153.6kHz | -10°C ~ 60°C |
| ECS-.655-12.5-13 | ECS Crystal | ECS-31 | 65.536kHz | -10°C ~ 60°C |
| ECS-.400-12.5-13 | ECS Crystal | ECS-31 | 40kHz | -10°C ~ 60°C |
| ECS-1.25-12.5-13 | ECS Crystal | ECS-31 | 125kHz | -10°C ~ 60°C |
| ECS-.327-12.5-34G-TR | ECS Crystal | ECX-34G | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-34G-TR | ECS Crystal | ECX-34G | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-34R-TR | ECS Crystal | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.600-12.5-13 | ECS Crystal | ECS-31 | 60kHz | -10°C ~ 60°C |
| ECS-.750-12.5-13 | ECS Crystal | ECS-31 | 75kHz | -10°C ~ 60°C |
| ECS-1.00-12.5-13 | ECS晶振 | ECS-31 | 100kHz | -10°C ~ 60°C |
| ECS-.320-12.5-13 | ECS Crystal | ECS-31 | 32kHz | -10°C ~ 60°C |
| ECS-.327-12.5-34RR-TR | ECS Crystal | ECX-34RR | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-34RR-TR | ECS Crystal | ECX-34RR | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-34RR-TR | ECS Crystal | ECX-34RR | 32.768kHz | -40°C ~ 85°C |
| ECS-135.6-10-33QZ-TR | ECS Crystal | ECX-33QZ | 13.56MHz | -40°C ~ 125°C |
| ECS-180.8-10-33QZ-TR | ECS Crystal | ECX-33QZ | 18.08MHz | -40°C ~ 125°C |
| ECS-196.875-10-33QZ-TR | ECS Crystal | ECX-33QZ | 19.6875MHz | -40°C ~ 125°C |
| ECS-260-10-33QZ-TR | ECS Crystal | ECX-33QZ | 26MHz | -40°C ~ 125°C |
