Skyworks晶振,12.123MHz,CMOS振荡器,OSC晶振Si540,540CAB12M1230BCG

产品简介

产品详情

Skyworks晶振,12.123MHz,CMOS振荡器,OSC晶振Si540,540CAB12M1230BCG

Skyworks晶振中编码为540CAB12M1230BCG的OSC晶振Si540，其频率是12.123MHz，输出方式为CMOS输出，是CMOS振荡器。该晶振的电压是1.8V,2.5V,3.3V，频率公差为±20ppm，运行温度范围是-40°C~85°C，其电流为108mA，尺寸是5032mm。CMOS晶体振荡器，CMOS输出晶振，Skyworks有源晶振。5032mm体积的石英晶体振荡器有源晶振,改产品可驱动2.5V的温补晶振,压控晶振,VC-TCXO晶体振荡器产品,电源电压的低电耗型,编带包装方式,可对应自动高速贴片机自动焊接,及IR回流焊接,为无铅产品,超小型,质地轻.产品被广泛应用到集成电路,程控交换系统,无线发射基站。

ggt2

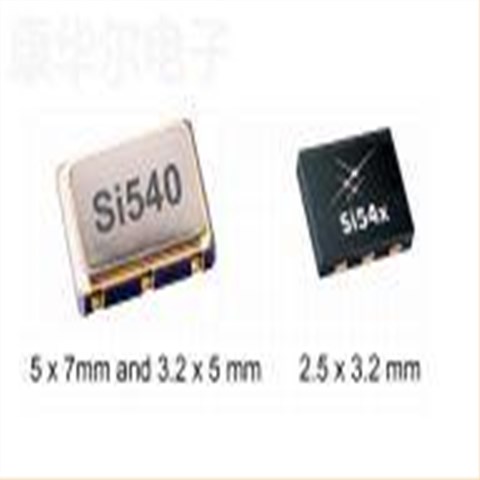

Skyworks晶振,12.123MHz,CMOS振荡器,OSC晶振Si540,540CAB12M1230BCG

原产编码	540CAB12M1230BCG
品牌	Skyworks晶振
型号	Si540
频率	12.123MHz
输出方式	CMOS
电压	1.8V,2.5V,3.3V
工作温度	﹣40℃~85℃
精度	±20ppm
电流	108mA
尺寸	5032mm

ggt3

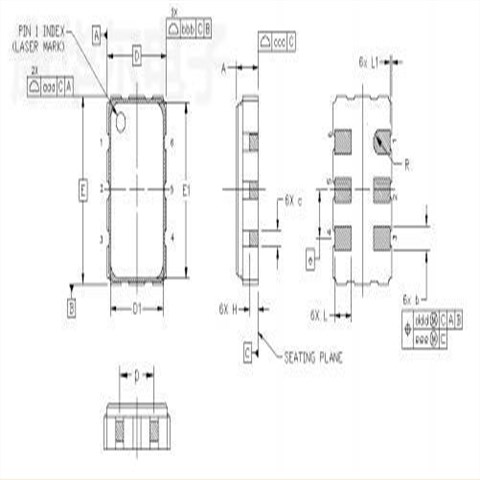

Skyworks晶振,12.123MHz,CMOS振荡器,OSC晶振Si540,540CAB12M1230BCG

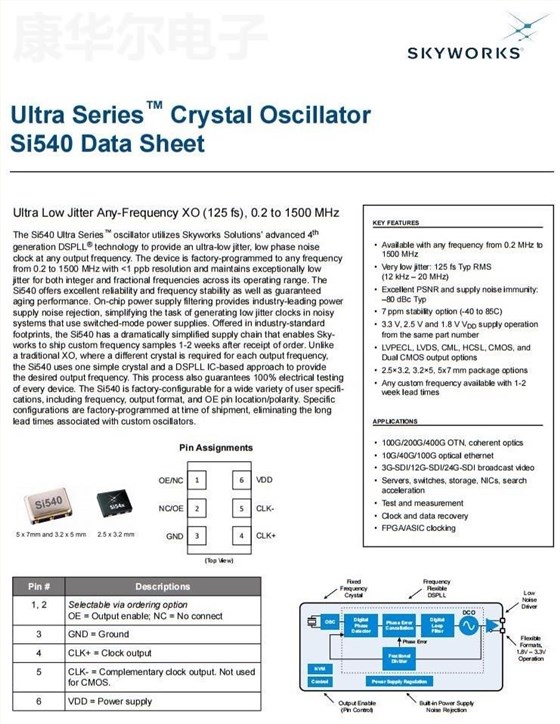

si540 cct5032

更多相关晶振参考

原产编码	品牌	型号	频率	输出方式	电压	精度
564BACA001478BBG	Skyworks晶振	Si564	100MHz	LVDS	1.8V,2.5V,3.3V	±20ppm
569DCBA001908BBG	Skyworks晶振	Si569	1.28127409GHz	CML	1.8V,2.5V,3.3V	±20ppm
569AAAA000112ABG	Skyworks晶振	Si569	10MHz	LVPECL	2.5V,3.3V	±20ppm
564BACA001989BBG	Skyworks晶振	Si564	2.048GHz	LVDS	1.8V,2.5V,3.3V	±20ppm
510CBA156M250AAG	Skyworks晶振	Si510	156.25MHz	CMOS	3.3V	±25ppm
510CBA30M0000AAG	Skyworks晶振	Si510	30MHz	CMOS	3.3V	±25ppm
500DLAA200M000ACF	Skyworks晶振	Si500D	200MHz	LVDS	2.5V	±150ppm
511ABA200M000BAG	Skyworks晶振	Si511	200MHz	LVPECL	3.3V	±25ppm
511MCA25M0000BAG	Skyworks晶振	Si511	25MHz	CMOS	3.3V	±20ppm
510JCA74M2500BAG	Skyworks晶振	Si510	74.25MHz	LVDS	1.8V	±20ppm
545AAA125M000BAG	Skyworks晶振	Si545	125MHz	LVPECL	2.5V,3.3V	±20ppm
530CA26M0000DG	Skyworks晶振	Si530	26MHz	CMOS	3.3V	±50ppm
530EB50M0000DGR	Skyworks晶振	Si530	50MHz	LVPECL	2.5V	±20ppm
590FD297M000DG	Skyworks晶振	Si590	297MHz	LVDS	2.5V	±7ppm
531FC25M0000DGR	Skyworks晶振	Si531	25MHz	LVDS	2.5V	±7ppm
514BCA001826BAG	Skyworks晶振	Si514	216.96MHz	LVDS	3.3V	±20ppm
531AC187M500DG	Skyworks晶振	Si531	187.5MHz	LVPECL	3.3V	±7ppm
530EA312M500DG	Skyworks晶振	Si530	312.5MHz	LVPECL	2.5V	±50ppm
545BCA000127BBG	Skyworks晶振	Si545	644.53125MHz	LVDS	1.8V,2.5V,3.3V	±7ppm
530FC311M040DG	Skyworks晶振	Si530	311.04MHz	LVDS	2.5V	±7ppm
530FC233M250DGR	Skyworks晶振	Si530	233.25MHz	LVDS	2.5V	±7ppm
531FC000274DG	Skyworks晶振	Si531	322.265625MHz	LVDS	2.5V	±7ppm
569AAAA002024ABG	Skyworks晶振	Si569	1MHz	LVPECL	2.5V,3.3V	±20ppm
570ACA001527DGR	Skyworks晶振	Si570	875MHz	LVPECL	3.3V	±7ppm
569ABCA002177ABG	Skyworks晶振	*	-	-	-	-
569AAAA000122BBG	Skyworks晶振	Si569	1GHz	LVPECL	2.5V,3.3V	±20ppm
510BBA100M000AAG	Skyworks晶振	Si510	100MHz	LVDS	3.3V	±25ppm
514CBB000112AAG	Skyworks晶振	Si514	10MHz	CMOS	3.3V	±25ppm
570BBC000121DG	Skyworks晶振	Si570	100MHz	LVDS	3.3V	±20ppm
598BCA001653DG	Skyworks晶振	Si598	90MHz	LVDS	3.3V	±20ppm
570BAB000544DGR	Skyworks晶振	Si570	156.25MHz	LVDS	3.3V	±50ppm
