思佳讯晶振,Si560晶体,1MHz,CML差分晶振,560DAC1M00000ABGR

思佳讯晶振中编码为560DAC1M00000ABGR的Si560晶体频率是1MHz，该晶振的输出方式为CML输出，是CML差分晶振，该晶振的电压是1.8V,2.5V,3.3V，频率公差为±20ppm，其运行温度是-40°C~85°C，电流为135mA，尺寸是7050mm。CML输出差分晶振，Skyworks差分晶振，7050 CML差分晶振。晶振外壳需要接地时,应该确保外壳和引脚不被意外连通而导致短路.从而导致晶体不起振,保证两条引脚的焊锡点不相连,否则也会导致晶体停振,对于需要剪脚的晶振,应该注意机械应力的影响，焊锡之后,要进行清洗,以免绝缘电阻不符合要求。

ggt2

思佳讯晶振,Si560晶体,1MHz,CML差分晶振,560DAC1M00000ABGR

原产编码	560DAC1M00000ABGR
品牌	Skyworks晶振
型号	Si560
频率	1MHz
输出方式	CML
电压	1.8V,2.5V,3.3V
工作温度	﹣40℃~85℃
精度	±20ppm
电流	135mA
尺寸	7050mm

思佳讯晶振,Si560晶体,1MHz,CML差分晶振,560DAC1M00000ABGR

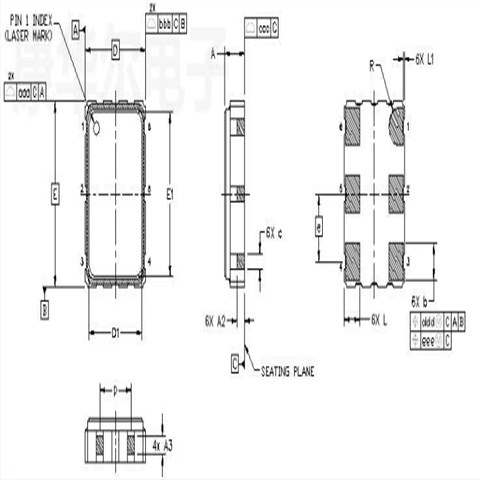

si560 cct7050

更多相关晶振参考

原产编码	品牌	型号	频率	输出方式	电压
531BC312M500DG	Skyworks晶振	Si531	312.5MHz	LVDS	3.3V
530BC250M000DG	Skyworks晶振	Si530	250MHz	LVDS	3.3V
531AC250M000DG	Skyworks晶振	Si531	250MHz	LVPECL	3.3V
531BC250M000DG	Skyworks晶振	Si531	250MHz	LVDS	3.3V
531FC250M000DG	Skyworks晶振	Si531	250MHz	LVDS	2.5V
510BBA000110BAG	Skyworks晶振	Si510	148.35165MHz	LVDS	3.3V
511FBA148M500AAG	Skyworks晶振	Si511	148.5MHz	LVDS	2.5V
511DBA100M000BAG	Skyworks晶振	Si511	100MHz	HCSL	3.3V
511FBA135M000BAG	Skyworks晶振	Si511	135MHz	LVDS	2.5V
514CBC001037BAG	Skyworks晶振	Si514	24.576MHz	CMOS	3.3V
530AC106M250DG	Skyworks晶振	Si530	106.25MHz	LVPECL	3.3V
530FC106M250DG	Skyworks晶振	Si530	106.25MHz	LVDS	2.5V
531EC106M250DG	Skyworks晶振	Si531	106.25MHz	LVPECL	2.5V
530EB50M0000DG	Skyworks晶振	Si530	50MHz	LVPECL	2.5V
530AA156M250DG	Skyworks晶振	Si530	156.25MHz	LVPECL	3.3V
531FB150M000DG	Skyworks晶振	Si531	150MHz	LVDS	2.5V
530EC148M500DG	Skyworks晶振	Si530	148.5MHz	LVPECL	2.5V
530FC148M500DG	Skyworks晶振	Si530	148.5MHz	LVDS	2.5V
530AB156M250DG	Skyworks晶振	Si530	156.25MHz	LVPECL	3.3V
530AC25M0000DG	Skyworks晶振	Si530	25MHz	LVPECL	3.3V
531AC100M000DG	Skyworks晶振	Si531	100MHz	LVPECL	3.3V
570CBC000306DG	Skyworks晶振	Si570	22.5792MHz	CMOS	3.3V
535AC156M250DG	Skyworks晶振	Si535	156.25MHz	LVPECL	3.3V
536AC125M000DG	Skyworks晶振	Si536	125MHz	LVPECL	3.3V
536AC156M250DG	Skyworks晶振	Si536	156.25MHz	LVPECL	3.3V
531FA312M500DG	Skyworks晶振	Si531	312.5MHz	LVDS	2.5V
531BC311M040DG	Skyworks晶振	Si531	311.04MHz	LVDS	3.3V
570BAB001641DG	Skyworks晶振	Si570	156.25MHz	LVDS	3.3V
570ABA001058DGR	Skyworks晶振	Si570	644.53MHz	LVPECL	3.3V
570ABA001328DGR	Skyworks晶振	Si570	1.066GHz	LVPECL	3.3V
510GBA100M000BAGR	Skyworks晶振	Si510	100MHz	CMOS	2.5V
510GBA125M000BAGR	Skyworks晶振	Si510	125MHz	CMOS	2.5V
510CBA25M0000AAGR	Skyworks晶振	Si510	25MHz	CMOS	3.3V
510GBA100M000AAGR	Skyworks晶振	Si510	100MHz	CMOS	2.5V
510GBA125M000AAGR	Skyworks晶振	Si510	125MHz	CMOS	2.5V
510CBA8M00000BAGR	Skyworks晶振	Si510	8MHz	CMOS	3.3V
510CBB16M0000BAGR	Skyworks晶振	Si510	16MHz	CMOS	3.3V
510CBB24M5760BAGR	Skyworks晶振	Si510	24.576MHz	CMOS	3.3V
