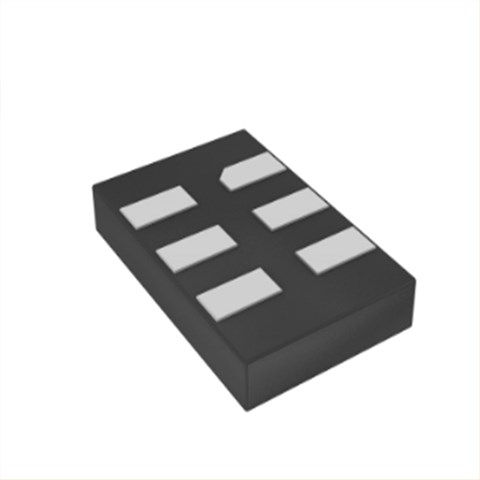

美国Microchip晶振/6G路由器晶振/DSC1103BI2-100.0000T，尺寸5.00x3.20mm，频率100MHZ，输出逻辑LVDS，电压2.25V ~ 3.63V,频率稳定性25ppm,XO时钟振荡器（标准），脚位6-VDFN，LVDS输出晶振，差分晶体振荡器，有源晶振，有源贴片晶振，差分贴片晶振，小尺寸差分晶振，小尺寸差分晶振，高精度差分晶振，高品质差分晶振，低功耗差分晶振，低电压差分晶振，低抖动差分晶振，路由器专用差分晶振，欧美进口晶振，产品超级适合用于存储区域网络，SATA、SAS、光纤通道，无源光网络，EPON，10G-EPON，GPON，10G-PON，HD/SD/SDI视频和监控，PCI Express第1代/第2代/第3代，显示端口等领域。
DSC1103具有待机功能，允许它 en引脚拉低时完全关断。为 DSC1123，当en为时，仅输出禁用 低。两款差分振荡器均符合行业标准包装，包括最小的2.5毫米x 2.0毫米， 是标准6针LVDS的替代产品晶体振荡器。美国Microchip晶振/6G路由器晶振/DSC1103BI2-100.0000T.
美国Microchip晶振/6G路由器晶振/DSC1103BI2-100.0000T 参数表
| Parameters | Sym. | Min. | Typ. | Max. | Units | Conditions | |||||||||||||
| Supply Voltage (Note 1) | VDD | 2.25 | 3.63 | V | |||||||||||||||
| Supply Current | IDD | — | — | 0.095 | mA |
DSC1103, EN pin low; all outputs disabled. |
|||||||||||||
| — | 20 | 22 |
DSC1123, EN pin low; all outputs disabled. |
||||||||||||||||
| Frequency Stability | Δf | ±10 | ppm |
Includes frequency variations due to initial tolerance, temp., and power supply voltage. |
|||||||||||||||
| ±20 | |||||||||||||||||||
| ±25 | |||||||||||||||||||
| ±50 | |||||||||||||||||||
| Aging - First Year | ΔfY1 | ±5 | ppm | One year at +25°C | |||||||||||||||
| Aging - After First Year | ΔfY2+ | — | — | <±1 | ppm/yr |
Year two and beyond at +25°C |
|||||||||||||
| Start-up Time (Note 2) | tSU | 5 | ms | T = +25°C | |||||||||||||||
| Input Logic Levels | VIH | 0.75 x VDD | V | Input logic high | |||||||||||||||
| VIL | 0.25 x VDD | Input logic low | |||||||||||||||||
| Output Disable Time (Note 3) | tDA | 5 | ns | ||||||||||||||||
| Output Enable Time | tEN | 5 | ms | DSC1103 | |||||||||||||||
| 20 | ns | DSC1123 | |||||||||||||||||
|
Enable Pull-Up Resistor (Note 4) |
RPU | — | 40 | — | kΩ | Pull-up resistor exist. | |||||||||||||
| LVDS Outputs | |||||||||||||||||||
| Supply Current | IDD | 29 | 32 | mA | Output enabled, RL= 100Ω | ||||||||||||||
| Output Offset Voltage | VOS | 1.125 | 1.4 | V | R = 100Ω Differential | ||||||||||||||
| Delta Offset Voltage | ΔVOS | 50 | mV | ||||||||||||||||
| Peak-to-Peak Output Swing | VPP | 350 | mV | Single-Ended | |||||||||||||||

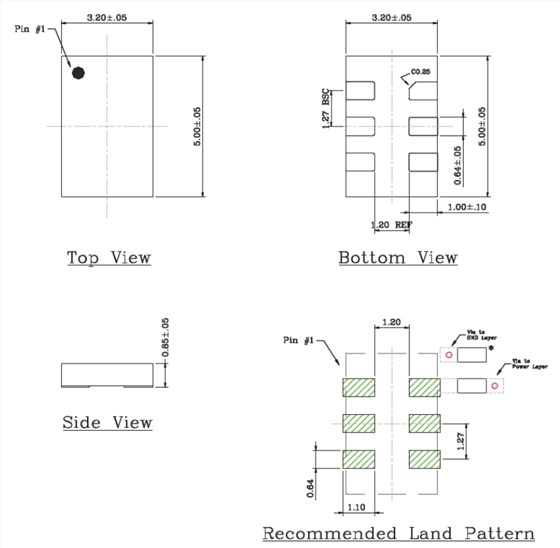

美国Microchip晶振/6G路由器晶振/DSC1103BI2-100.0000T尺寸图
SPXO晶振产品特性：
低RMS相位抖动：＜1 ps（典型值）
高稳定性：±10 ppm、±20 ppm、±25 ppm，±50 ppm
宽温度范围：
-外部工业–40°C至+105°C
-工业-40°C至+85°C
-外部商用-20°C至+70°C
高电源噪声抑制：-50 dBc
宽频率范围：
-2.3 MHz–460 MHz
小型行业标准足迹
-2.5毫米x 2.0毫米
-3.2毫米x 2.5毫米
-5.0毫米x 3.2毫米
-7.0毫米x 5.0毫米
卓越的冲击和振动抗扰性
符合MIL-STD-883
高可靠性
-MTF是基于石英的设备的20倍
低电流消耗
供电范围为2.25V至3.63V
待机和输出启用功能
无铅且符合RoHS
