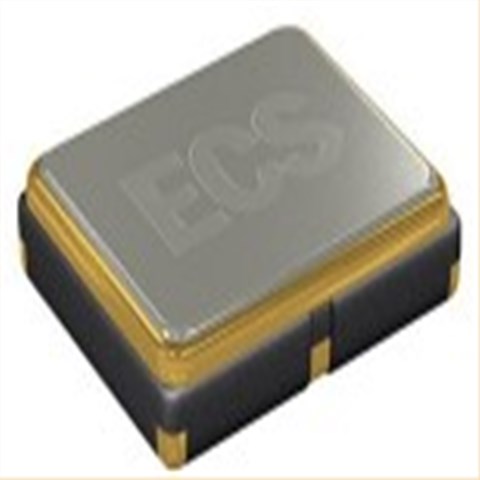

ECS小体积晶振,ECS-260-12-37QZ-ADS-TR,汽车充电器6G晶振，美国进口晶振，ECS伊西斯石英晶振，型号：ECX-1637QZ，编码为：ECS-260-12-37QZ-ADS-TR，频率为：26.000MHz，小体积晶振尺寸：2.0x1.6x0.45mm封装，四脚贴片晶振，石英贴片晶振，无源晶振，石英晶体谐振器，耐高温晶振，无铅晶振，SMD石英晶体，超微型坚固耐用的ECX-1637QZ紧凑型SMD晶体，2016mm陶瓷封装与额外的内部连接点，具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点，非常适合恶劣的高冲击/振动环境，如汽车或TPMS应用，可穿戴设备，智能手机，平板电脑，无线蓝牙，数码电子，智能家居等。

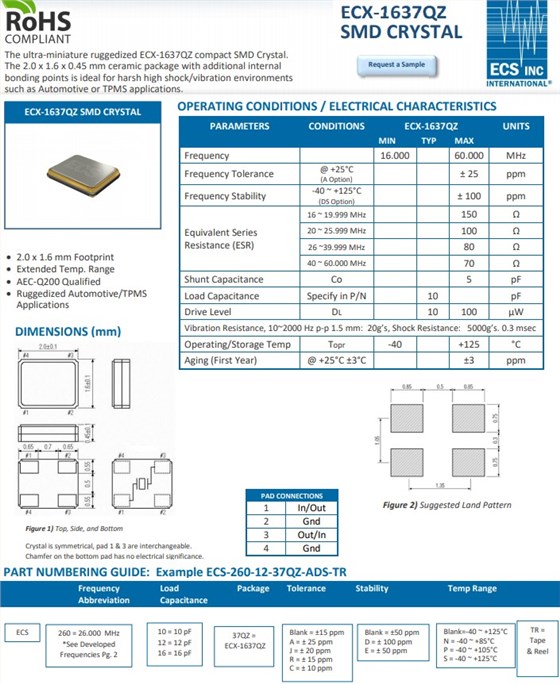

ECS小体积晶振,ECS-260-12-37QZ-ADS-TR,汽车充电器6G晶振 参数表
PARAMETERS
CONDITIONS
ECX-1637QZ
UNITS
MIN
TYP
MAX
Frequency
26
MHz
Frequency Tolerance
@ +25°C
(A Option)
± 25
ppm
Frequency Stability
-40 ~ +125°C
(DS Option)
± 100
ppm
Equivalent Series
Resistance (ESR)
16 ~ 19.999 MHz
150
Ω
20 ~ 25.999 MHz
100
Ω
26 ~39.999 MHz
80
Ω
40 ~ 60.000 MHz
70
Ω
Shunt Capacitance
Co
5
pF
Load Capacitance
Specify in P/N
10
pF
Drive Level
DL
10
100
μW
Vibration Resistance, 10~2000 Hz p-p 1.5 mm:20g’s, Shock Resistance:5000g’s. 0.3 msec
Operating/Storage Temp
Topr
-40
+125
°C
Aging (First Year)
@ +25°C ±3°C
±3
ppm

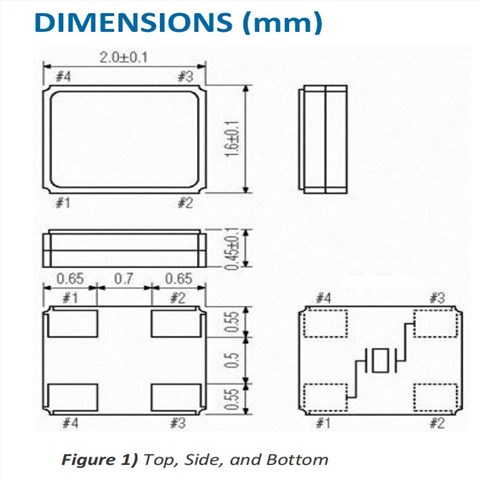

ECS小体积晶振,ECS-260-12-37QZ-ADS-TR,汽车充电器6G晶振 尺寸图
ECS小体积晶振,ECS-260-12-37QZ-ADS-TR,汽车充电器6G晶振
产品特点：
小型尺寸：2.0 x 1.6 mm四脚石英贴片晶振
扩展温度
AEC-Q200合格的
坚固汽车/TPMS应用
