Hosonic水晶振动子\ETSB石英晶振\ETSB48E007502E\6G无线模块晶振

Hosonic水晶振动子\ETSB石英晶振\ETSB48E007502E\6G无线模块晶振，尺寸1.6x1.2mm，频率48MHZ，鸿星石英晶体，四脚贴片晶振，超小型晶振，SMD晶振，石英贴片晶振，水晶振动子，石英晶体谐振器，无源贴片晶振，无源晶体，可穿戴设备晶振，蓝牙专用晶振，智能家居专用晶振，平板电脑贴片晶振，智能音响晶振，无线模块专用晶振，低损耗无源晶振，低功耗晶振，高精度石英晶振，高品质贴片晶振，产品具有高品质低功耗的特点.

石英贴片晶振产品主要应用范围十分广泛，比较常用于可穿戴设备，无线模块，智能音响，平板电脑等领域，还可以应用于蓝牙产品.Hosonic水晶振动子\ETSB石英晶振\ETSB48E007502E\6G无线模块晶振.

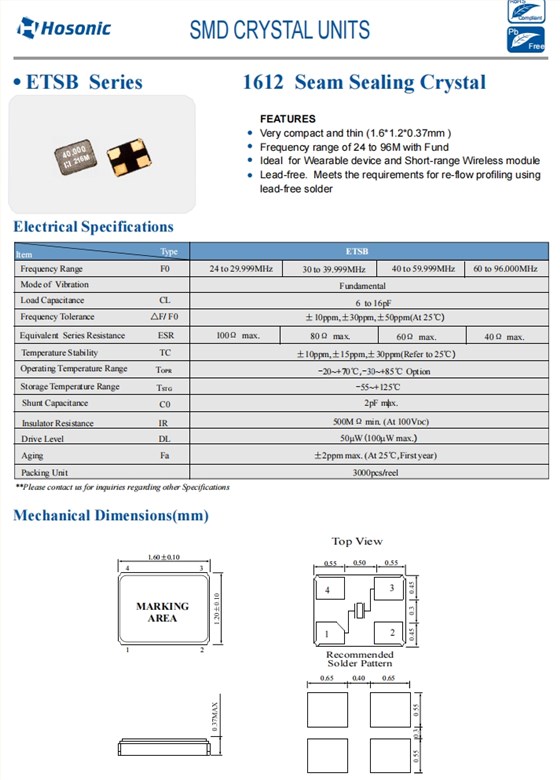

Hosonic水晶振动子\ETSB石英晶振\ETSB48E007502E\6G无线模块晶振 参数表

Item	Type	ETSB
Frequency Range	F0	38.4MHZ	30 to 39.999MHz	40 to 59.999MHz	60 to 96.000MHz
Mode of Vibration		Fundamental
Load Capacitance	CL	6to 16pF
Frequency Tolerance	ΔF/ F0	±10ppm,±30ppm,±50ppm(At 25℃)
EquivalentSeries Resistance	ESR	100Ωmax.	80Ωmax.	60Ωmax.	40Ωmax.
Temperature Stability	TC	±10ppm,±15ppm,±30ppm(Refer to 25℃)
Operating Temperature Range	TOPR	-20~+70℃,-30~+85℃Option
Storage Temperature Range	TSTG	-55~+125℃
Shunt Capacitance	C0	2pF max.
Insulator Resistance	IR	500MΩmin. (At 100VDC)
Drive Level	DL	50μW(100μW max.)
Aging	Fa	±2ppm max. (At 25℃,First year)
Packing Unit		3000pcs/reel

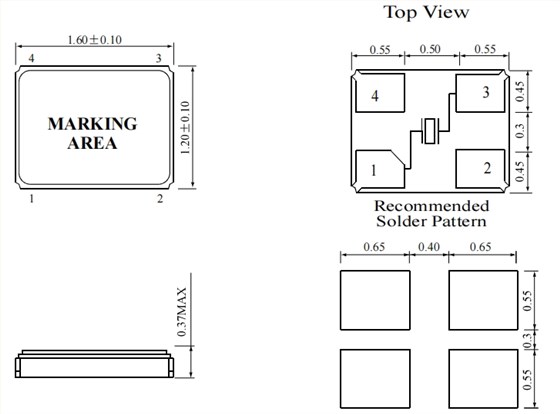

Hosonic水晶振动子\ETSB石英晶振\ETSB48E007502E\6G无线模块晶振尺寸图

晶体音叉晶振产品特性：

非常紧凑和薄（1.6*1.2*0.37mm）

标准的频率范围为2400至9600万

适用于可穿戴设备和短程无线模块

无铅。满足使用回流剖面的要求

无铅焊料

更多相关Hosonic鸿星晶振型号

Mfr Part #	Supplier	Description	Series	Frequency	Frequency Stability稳定度	Frequency Tolerance	Load Capacitance
E2SB40E000104ECBB8	Hosonic鸿星无源晶振	XTAL 2520 40MHZ, 12PF/7/10/-30+9	E2SB	40 MHz	±10ppm	±7ppm	12pF
E2SB38E0X0300E	Hosonic鸿星无源晶振	XTAL 2520 38.4MHZ, 8PF	E2SB	38.4 MHz	±10ppm	±10ppm	8pF
E2SB40E000107E	Hosonic鸿星无源晶振	XTAL 2520 40MHZ 12PF	E2SB	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E2SB40E00010AE	Hosonic鸿星无源晶振	XTAL 2520 40MHZ, 7PF	E2SB	40 MHz	±10ppm	±7ppm	7pF
E2SB27E0X0000E	Hosonic鸿星无源晶振	XTAL 2520 27.12MHZ 8PF	E2SB	27.12 MHz	±10ppm	±10ppm	8pF
E2SB24E001801E	Hosonic鸿星无源晶振	XTAL 2520 24MHZ, 12PF	E2SB	24 MHz	±20ppm	±20ppm	12pF
E2SB40E000108E	Hosonic鸿星无源晶振	XTAL 2520 40MHZ, 6PF/7/15/-40+10	E2SB	40 MHz	±15ppm	±7ppm	6pF
ETSB37E0X0014E	Hosonic鸿星无源晶振	XTAL 1612 37.4MHZ,16PF	ETSB	37.4 MHz	±10ppm	±10ppm	16pF
ETSB38E0X0005E	Hosonic鸿星无源晶振	XTAL 1612 38.4MHZ, 10PF/10/10/-3	ETSB	38.4 MHz	±10ppm	±10ppm	10pF
E2SB12E000005E	Hosonic鸿星无源晶振	XTAL 2520 12MHZ, 12PF	E2SB	12 MHz	±20ppm	±20ppm	12pF
ETSB24E000003E	Hosonic鸿星无源晶振	XTAL 1612 24MHZ, 8PF	ETSB	24 MHz	±10ppm	±10ppm	8pF
ETSB48E007500ECBB8	Hosonic鸿星无源晶振	CRYSTAL 48.0000MHZ 10PF SMD	ETSB	48 MHz	±15ppm	±10ppm	10pF
ETSB48E007502E	Hosonic鸿星无源晶振	XTAL 1612 48MHZ, 10PF/10/15/-40+	ETSB	48 MHz	±15ppm	±10ppm	10pF
ETSB32E000003E	Hosonic鸿星无源晶振	XTAL 1612 32MHZ, 8PF	ETSB	32 MHz	±10ppm	±10ppm	8pF
ETSB60E003700E	Hosonic鸿星无源晶振	XTAL 1612 60MHZ,9P	ETSB	60 MHz	±20ppm	±10ppm	9pF
E3FB24E00000KE	Hosonic鸿星无源晶振	XTAL 3225 24MHZ, 12PF	E3FB	24 MHz	±30ppm	±30ppm	12pF
E2SB16E00000ME	Hosonic鸿星无源晶振	XTAL 2520 16MHZ 12PF	E2SB	16 MHz	±30ppm	±30ppm	12pF
E2SB26E001201E	Hosonic鸿星无源晶振	XTAL 2520 26MHZ, 9PF	E2SB	26 MHz	±13ppm	±5ppm	9pF
E2SB32E001201E	Hosonic鸿星无源晶振	XTAL 2520 32MHZ,12P	E2SB	32 MHz	±10ppm	±10ppm	12pF
ETSB27E0X0003E	Hosonic鸿星无源晶振	XTAL 1612 27.12MHZ, 10PF	ETSB	27.12 MHz	±10ppm	±10ppm	10pF
ETSB25E004800E	Hosonic鸿星无源晶振	XTAL 1612 25MHZ,8P	ETSB	25 MHz	±15ppm	±10ppm	8pF
E2SB32E00000LE	Hosonic鸿星无源晶振		E2SB	32MHz	±10ppm		9pF
E2SB37E0X0002E	Hosonic鸿星无源晶振		E2SB	37.4MHz	±10ppm		10pF
E3FB26E004203E	Hosonic鸿星无源晶振		E3FB	26MHz	±10ppm		7.3pF
E2SB24E000016E	Hosonic鸿星无源晶振		E2SB	24MHz	±10ppm		20pF
E2SB54E000000E	Hosonic鸿星无源晶振		E2SB	54MHz	±10ppm		10pF
E2SB48E000009E	Hosonic鸿星无源晶振		E2SB	48MHz	±10ppm		12pF
E2SB50E00000EE	Hosonic鸿星无源晶振		E2SB	50MHz	±14ppm		19pF
E2SB37E0X0004E	Hosonic鸿星无源晶振		E2SB	37.4MHz	±10ppm		12pF
E2SB40E000007E	Hosonic鸿星无源晶振		E2SB	40MHz	±10ppm		10pF
E2SB40E000003E	Hosonic鸿星无源晶振		E2SB	40MHz	±10ppm		8pF
E2SB24E00001NE	Hosonic鸿星无源晶振		E2SB	24MHz	±15ppm		16pF
E2SB40E00000RE	Hosonic鸿星无源晶振		E2SB	40MHz	±30ppm		20pF
E2SB38E0X0007E	Hosonic鸿星无源晶振		E2SB	38.400MHz	±10ppm		10pF
E2SB54E000009E	Hosonic鸿星无源晶振		E2SB	54MHz	±5ppm		19pF
E2SB26E00000GE	Hosonic鸿星无源晶振		E2SB	26MHz	±10ppm		16pF
E2SB26E000007E	Hosonic鸿星无源晶振		E2SB	26MHz	±10ppm		9pF
E2SB40E000006E	Hosonic鸿星贴片石英晶体		E2SB	40MHz	±10ppm		10pF
E2SB40E00000EE	Hosonic鸿星无源晶振		E2SB	40MHz	±10ppm		15pF
E2SB26E00000DE	Hosonic鸿星无源晶振		E2SB	26MHz	±10ppm		12pF
E2SB50E00000CE	Hosonic鸿星无源晶振		E2SB	50MHz	±10ppm		8pF
E2SB48E000004E	Hosonic鸿星无源晶振		E2SB	48MHz	±10ppm		10pF
E2SB16E000014E	Hosonic鸿星无源晶振		E2SB	16MHz	±10ppm		16pF
E2SB40E000009E	Hosonic鸿星无源晶振		E2SB	40MHz	±10ppm		12pF
E2SB26E000005E	Hosonic鸿星无源晶振		E2SB	26.000MHz	±10ppm		9PF
E2SB12E00000CE	Hosonic鸿星无源晶振		E2SB	12MHz	±20ppm		18pF
E2SB16E000007E	Hosonic鸿星无源晶振		E2SB	16MHz	±10ppm		10pF
E2SB16E00000VE	Hosonic鸿星无源晶振		E2SB	16MHz	±10ppm		12pF
E2SB27E00000KE	Hosonic鸿星无源晶振		E2SB	27MHz	±10ppm		10pF
E2SB40E00000WE	Hosonic鸿星无源晶振		E2SB	40MHz	±10ppm		9pF
E2SB16E000003E	Hosonic鸿星无源晶振		E2SB	16MHz	±10ppm		9pF
E2SB27E00000EE	Hosonic鸿星无源晶振		E2SB	27.000MHz	±10ppm		20pF
E2SB32E000018E	Hosonic鸿星无源晶振		E2SB	32MHz	±10ppm		10pF
E2SB26E000103E	Hosonic鸿星无源晶振		E2SB	26MHz	±10ppm		7.5pF
E2SB40E00000JE	Hosonic鸿星无源晶振		E2SB	40MHz	±10ppm		12pF
E2SB12E000014E	Hosonic鸿星无源晶振		E2SB	12MHz	±10ppm		20pF
E2SB38E0X000HE	Hosonic鸿星无源晶振		E2SB	38.4MHz	±10ppm		12pF
E2SB24E00000LE	Hosonic鸿星无源晶振		E2SB	24.000MHz	±10ppm		12PF
E2SB24E00000ZE	Hosonic鸿星无源晶振		E2SB	24MHz	±10ppm		9pF
E2SB27E0X000CE	Hosonic鸿星无源晶振		E2SB	27.12MHz	±10ppm		10pF
