普锐特物联网晶振,SM7T-12-27.0M-10H1GJ,27MHZ,1612mm，尺寸1.6x1.2mm，频率27MHZ，进口Pletronics晶体，无源贴片晶振，石英晶体谐振器，四脚贴片晶振，1612mm无源晶振，水晶振动子，石英贴片晶振，无源石英晶体，无源晶振，石英晶振，WiFi应用晶振，蓝牙耳机晶振，无线局域网晶振，物联网晶振，可穿戴设备晶振，平板电脑晶振，智能家居晶振，高性能晶振，高质量晶振，低损耗晶振，低功耗晶振，低耗能晶振，具有低损耗高质量高性能的特点。
石英晶振产品被广泛用于蓝牙应用，WiFi，无线局域网，特别适合用于物联网，可穿戴设备，平板电脑，智能家居，Zigbee等应用。普锐特物联网晶振,SM7T-12-27.0M-10H1GJ,27MHZ,1612mm.

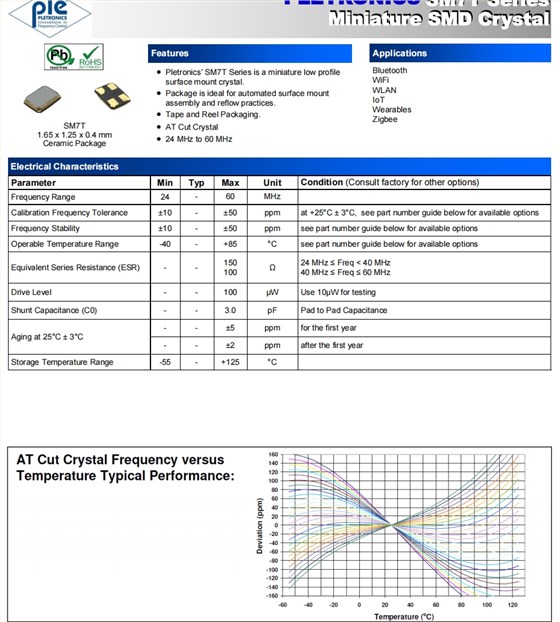

普锐特物联网晶振,SM7T-12-27.0M-10H1GJ,27MHZ,1612mm 参数表
| Parameter | Min | Typ | Max | Unit | Condition(Consult factory for other options) | ||||||||||||||
| Frequency Range |
|
27 |
|
MHz | |||||||||||||||
| Calibration Frequency Tolerance | ±10 | - | ±50 | ppm | at +25°C ± 3°C,see part number guide below for available options | ||||||||||||||
| Frequency Stability | ±10 | - | ±50 | ppm | see part number guide below for available options | ||||||||||||||
| Operable Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | ||||||||||||||
| Equivalent Series Resistance (ESR) | - | - |
150 100 |
Ω |
24 MHz ≤ Freq < 40 MHz 40 MHz ≤ Freq ≤ 60 MHz |
||||||||||||||
| Drive Level | - | - | 100 | µW | Use 10µW for testing | ||||||||||||||
| Shunt Capacitance (C0) | - | - | 3.0 | pF | Pad to Pad Capacitance | ||||||||||||||
| Aging at 25°C ± 3°C | - | - | ±5 | ppm | for the first year | ||||||||||||||
| - | - | ±2 | ppm | after the first year | |||||||||||||||
| Storage Temperature Range | -55 | - | +125 | °C | |||||||||||||||

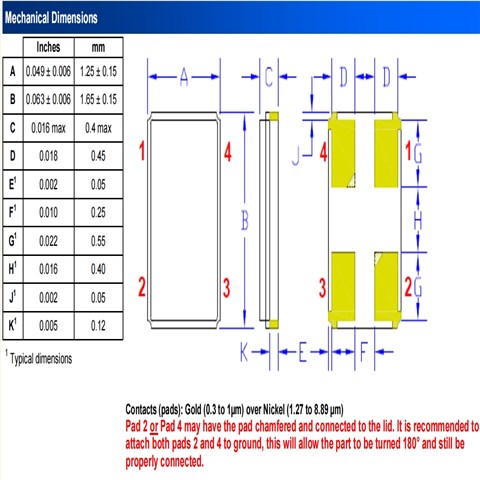

普锐特物联网晶振,SM7T-12-27.0M-10H1GJ,27MHZ,1612mm 尺寸图

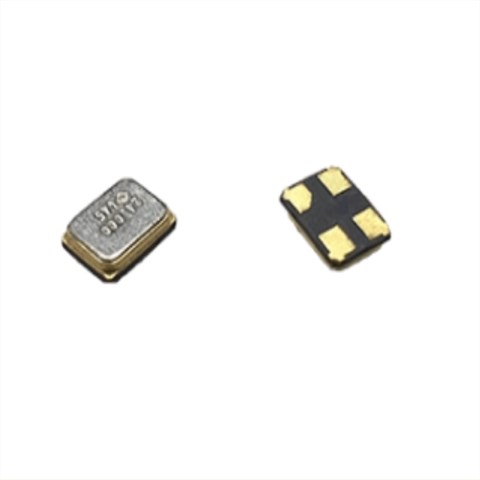

普锐特物联网晶振,SM7T-12-27.0M-10H1GJ,27MHZ,1612mm
贴片石英晶体产品特点：
Pletronics的SM7T系列是一款微型低姿态表面贴装水晶。
包装是自动表面安装的理想选择组装和回流实践。
磁带和卷轴包装。
AT切割水晶
24MHz至60MHz
