XPRESSO FXO-LC52晶振中原厂编码为XLL526125.000000I的RENESAS LVDS OSCILLATOR，其频率是125MHz，输出方式为LVDS输出，是Renesas LVDS差分晶振，该晶振的电压是2.5V，频率公差为±25ppm，其运行温度为-40°C~85°C，电流是34mA，尺寸为5032mm。LVDS差分贴片晶振，六脚SMD晶振，瑞萨LVDS输出差分晶振。小型SMD有源晶振,从最初超大体积到现在的7050mm,6035mm,5032mm,3225mm,2520mm体积,有着翻天覆地的改变,体积的变小也试产品带来了更高的稳定性能,接缝密封石英晶体振荡器,精度高,覆盖频率范围宽的特点,SMD高速自动安装和高温回流焊设计。
XLL526125.000000I,XPRESSO FXO-LC52,RENESAS LVDS OSCILLATOR
|
原产编码 |
XLL526125.000000I |
|
品牌 |
Renesas |
|
型号 |
XPRESSO FXO-LC52 |
|
频率 |
125MHz |
|
输出方式 |
LVDS |
|
电压 |
2.5V |
|
工作温度 |
﹣40℃~85℃ |
|
精度 |
±25ppm |
|
电流 |
34mA |
|
尺寸 |

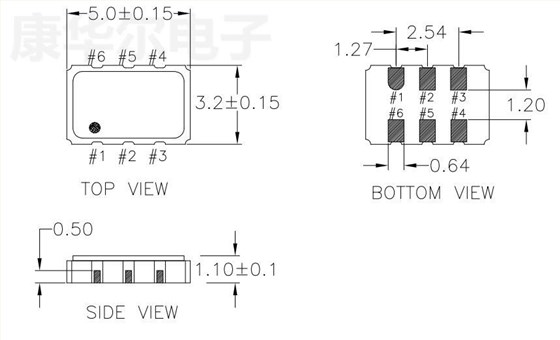

5032mm |
XLL526125.000000I,XPRESSO FXO-LC52,RENESAS LVDS OSCILLATOR
更多相关晶振参考
| 编码 | 品牌 | 型号 | 频率 | 输出方式 | 电压 | 精度 |
| XLH738042.800000X | Renesas | XPRESSO FXO-HC73 | 42.8MHz | HCMOS | 3.3V | ±20ppm |
| XLH736003.579545I | Renesas | XPRESSO FXO-HC73 | 3.579545MHz | HCMOS | 3.3V | ±25ppm |
| XLH736045.158400I | Renesas | XPRESSO FXO-HC73 | 45.1584MHz | HCMOS | 3.3V | ±25ppm |
| XLH536014.745600I | Renesas | XPRESSO FXO-HC53 | 14.7456MHz | HCMOS | 3.3V | ±25ppm |
| XLH538027.120000X | Renesas | XPRESSO FXO-HC53 | 27.12MHz | HCMOS | 3.3V | ±20ppm |
| XLH536168.960000I | Renesas | XPRESSO FXO-HC53 | 168.96MHz | HCMOS | 3.3V | ±25ppm |
| XLL330120.000000X | Renesas | XL | 120MHz | LVDS | 3.3V | ±100ppm |
| XLH73V073.728000I | Renesas | XPRESSO FVXO-HC73 | 73.728MHz | HCMOS | 3.3V | - |
| XLH73V074.250000I | Renesas | XPRESSO FVXO-HC73 | 74.25MHz | HCMOS | 3.3V | - |
| XAH335025.000000K | Renesas | XAH | 25MHz | LVCMOS | 3.3V | ±50ppm |
| XAH335030.000000K | Renesas | XAH | 30MHz | LVCMOS | 3.3V | ±50ppm |
| XLH336156.250JX4I | Renesas | XLH | 156.25MHz | HCMOS | 3.3V | ±25ppm |
| XLH335001.024000I | Renesas | XL | 1.024MHz | HCMOS | 3.3V | ±50ppm |
| XLL325040.000000I | Renesas | XL | 40MHz | LVDS | 2.5V | ±50ppm |
| XLL530108.000000I | Renesas | XL | 108MHz | LVDS | 3.3V | ±100ppm |
| XLL338C50.000000X | Renesas | XL | 1.25GHz | LVDS | 3.3V | ±100ppm |
| XLP735125.000000I | Renesas | XPRESSO FXO-PC73 | 125MHz | LVPECL | 3.3V | ±50ppm |
| XLP736080.000000I | Renesas | XPRESSO FXO-PC73 | 80MHz | LVPECL | 3.3V | ±25ppm |
| XLL726156.250000I | Renesas | XPRESSO FXO-LC72 | 156.25MHz | LVDS | 2.5V | ±25ppm |
| XLL73V148.351648I | Renesas | XPRESSO FVXO-LC73 | 148.351648MHz | LVDS | 3.3V | - |
| XUH736156.250JU4I | Renesas | XUH | 156.25MHz | HCMOS | 3.3V | ±25ppm |
| XLP73V500.000000I | Renesas | XPRESSO FVXO-PC73 | 500MHz | LVPECL | 3.3V | - |
| XUL535100.000000I | Renesas | XU | 100MHz | LVDS | 3.3V | ±50ppm |
| XLL726371.428571I | Renesas | XLL | 371.428571MHz | LVDS | 2.5V | ±25ppm |
| XLP728161.132000X | Renesas | XPRESSO FXO-PC72 | 161.132MHz | LVPECL | 2.5V | ±20ppm |
| XUP536212.500JS6I | Renesas | XUP | 212.5MHz | LVPECL | 3.3V | ±25ppm |
| XLP726300.000000I | Renesas | XPRESSO FXO-PC72 | 300MHz | LVPECL | 2.5V | ±25ppm |
| XLL536125.000000I | Renesas | XPRESSO FXO-LC53 | 125MHz | LVDS | 3.3V | ±25ppm |
| XLH526025.000000I | Renesas | XPRESSO FXO-HC52 | 25MHz | HCMOS | 2.5V | ±25ppm |
| XLH735024.576000X | Renesas | XPRESSO FXO-HC73 | 24.576MHz | HCMOS | 3.3V | ±50ppm |
