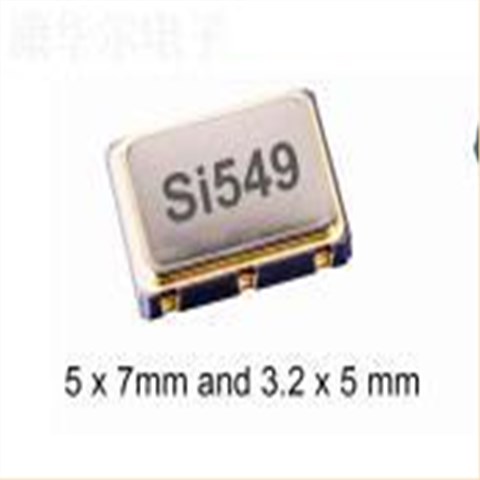

Skyworks晶振中编码为549DAAA000485BCG的Si549贴片晶振频率为625MHz ，是一款尺寸为5.0*3.2*1.33mm，电压为1.8V ~ 3.3V，精度为±20ppm，电流是121mA，工作温度范围在-40°C ~ 85°C，输出方式是CML的Skyworks CML石英晶体振荡器、CML差分晶体振荡器、5032振荡器。贴片式石英晶体振荡器,低电压启动功率,并且有多种电压供选择1.8V~3.3V,产品被广泛应用于平板笔记本、GPS系统、光纤通道、千兆以太网、串行ATA、串行连接SCSI、PCI-Express的SDH / SONET发射基站等领域，符合RoHS/无铅。
549DAAA000485BCG,625MHz,Skyworks CML石英晶体振荡器,Si549贴片晶振
|
原产编码 |
549DAAA000485BCG |
|
品牌 |
Skyworks晶振 |
|
型号 |
Si549 |
|
频率 |
625MHz |
|
输出方式 |
CML |
|
电压 |
1.8V ~ 3.3V |
|
工作温度 |
﹣40℃~85℃ |
|
精度 |
±20ppm |
|
电流 |
121mA |
|
尺寸 |
5032mm |
549DAAA000485BCG,625MHz,Skyworks CML石英晶体振荡器,Si549贴片晶振
更多相关晶振参考
| 原产编码 | 品牌 | 型号 | 频率 | 输出方式 | 电压 |
| 549BCCB000126ACG | Skyworks晶振 | Si549 | 200MHz | LVDS | 1.8V~3.3V |
| 549CBAC000508ACG | Skyworks晶振 | Si549 | 25MHz | CMOS | 1.8V~3.3V |
| 549DACB001619ACG | Skyworks晶振 | Si549 | 156.25MHz | CML | 1.8V~3.3V |
| 549ACAA000112ACG | Skyworks晶振 | Si549 | 10MHz | LVPECL | 2.5V~3.3V |
| 549CCAC000118ACG | Skyworks晶振 | Si549 | 156.25MHz | CMOS | 1.8V~3.3V |
| 549GCDC002122ACG | Skyworks晶振 | Si549 | 71.135MHz | CMOS | 1.8V~3.3V |
| 549AAAA001372ACG | Skyworks晶振 | Si549 | 7MHz | LVPECL | 2.5V~3.3V |
| 549BCAA000133ACG | Skyworks晶振 | Si549 | 500MHz | LVDS | 1.8V~3.3V |
| 549BCCB001125ACG | Skyworks晶振 | Si549 | 156.25MHz | LVDS | 1.8V~3.3V |
| 549ACAA000111ACG | Skyworks晶振 | Si549 | 25MHz | LVPECL | 2.5V~3.3V |
| 549DAAB001963BCGR | Skyworks晶振 | Si549 | 304.125MHz | CML | 1.8V~3.3V |
| 549BCCB002127ACGR | Skyworks晶振 | Si549 | 200MHz | LVDS | 1.8V~3.3V |
| 549CAAC000385BCGR | Skyworks晶振 | Si549 | 10MHz | CMOS | 1.8V~3.3V |
| 549AAAA000426ACGR | Skyworks晶振 | Si549 | 145MHz | LVPECL | 2.5V~3.3V |
| 549CAAC000385BCG | Skyworks晶振 | Si549 | 10MHz | CMOS | 1.8V~3.3V |
| 549CBAC000508ACGR | Skyworks晶振 | Si549 | 25MHz | CMOS | 1.8V~3.3V |
| 549DAAA000485BCG | Skyworks晶振 | Si549 | 625MHz | CML | 1.8V~3.3V |
| 549BCCB002128ACGR | Skyworks晶振 | Si549 | 200MHz | LVDS | 1.8V~3.3V |
| 549BAAA000798BCG | Skyworks晶振 | Si549 | 1MHz | LVDS | 1.8V~3.3V |
| 549BAAC000111BCG | Skyworks晶振 | Si549 | 25MHz | LVDS | 1.8V~3.3V |
| 549GAAA000956BCG | Skyworks晶振 | Si549 | 6.78MHz | CMOS | 1.8V~3.3V |
| 549BAAC000115BCG | Skyworks晶振 | Si549 | 125MHz | LVDS | 1.8V~3.3V |
| 549ABAB000115BCGR | Skyworks晶振 | Si549 | 125MHz | LVPECL | 2.5V~3.3V |
| 549BCAA000131BCGR | Skyworks晶振 | Si549 | 120MHz | LVDS | 1.8V~3.3V |
| 549CCAC002099BCG | Skyworks晶振 | Si549 | 1MHz | CMOS | 1.8V~3.3V |
| 549AAAA000112BCGR | Skyworks晶振 | Si549 | 10MHz | LVPECL | 2.5V~3.3V |
| 549CAAC000306BCGR | Skyworks晶振 | Si549 | 22.5792MHz | CMOS | 1.8V~3.3V |
| 549BBAA000368BCGR | Skyworks晶振 | Si549 | 122.88MHz | LVDS | 1.8V~3.3V |
