伊西斯SMD晶体,ECS-245.7-10-36Q-ES-TR,ECX-2236Q汽车音响6G晶振，美国进口晶振，ECS伊西斯晶振，型号：ECX-2236Q，编码为：ECS-245.7-10-36Q-ES-TR，频率为：24.576MHz，小体积晶振尺寸：2.5x2.0mm封装，四脚贴片晶振，石英贴片晶振，无源晶振，石英晶体谐振器，耐高温晶振，无铅晶振，SMD石英晶体，AEC-Q200合格，工作温度范围：-40℃至+125℃。具有超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境特点。2520晶振被广泛应用于：汽车电子，汽车音响，车载控制器，通讯设备，无线蓝牙，电信，医疗设备，安防设备，航空航天电子，平板电脑，数码电子，物联网等应用。

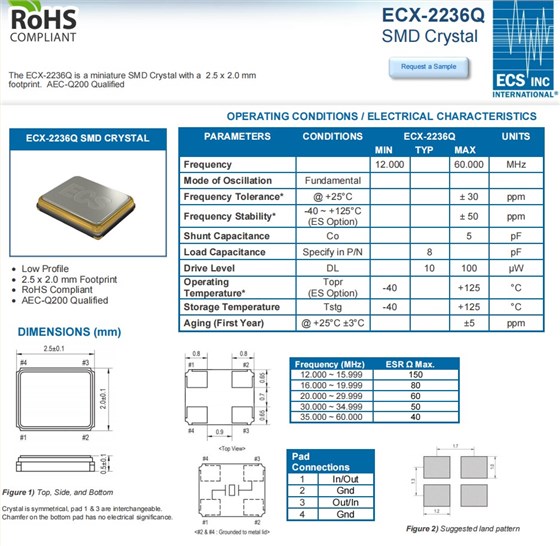

伊西斯SMD晶体,ECS-245.7-10-36Q-ES-TR,ECX-2236Q汽车音响6G晶振 参数表
PARAMETERS
CONDITIONS
ECX-2236Q
UNITS
MIN
TYP
MAX
Frequency
24.576
MHz
Mode of Oscillation
Fundamental
Frequency Tolerance*
@ +25°C
± 30
ppm
Frequency Stability*
-40 ~ +125°C
(ES Option)
± 50
ppm
Shunt Capacitance
Co
5
pF
Load Capacitance
Specify in P/N
8
pF
Drive Level
DL
10
100
μW
Operating
Temperature*
Topr
(ES Option)
-40
+125
°C
Storage Temperature
Tstg
-40
+125
°C
Aging (First Year)
@ +25°C ±3°C
±5
ppm

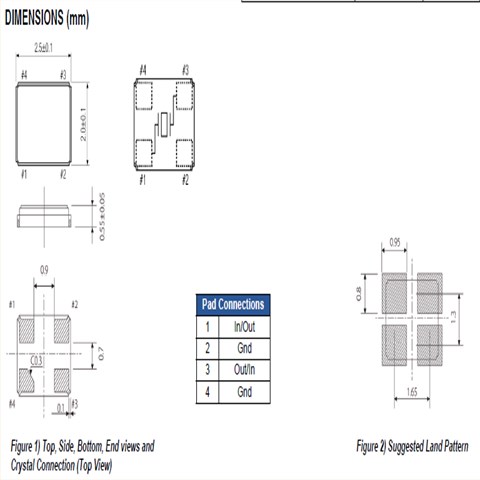

伊西斯SMD晶体,ECS-245.7-10-36Q-ES-TR,ECX-2236Q汽车音响6G晶振 尺寸图

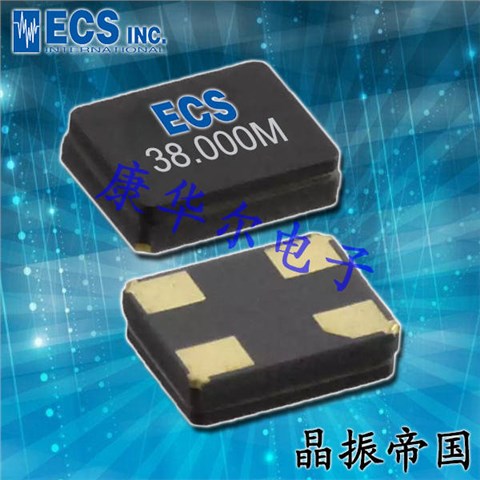

伊西斯SMD晶体,ECS-245.7-10-36Q-ES-TR,ECX-2236Q汽车音响6G晶振
2520mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的贴片晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接（产品无铅对应）,为无铅产品.

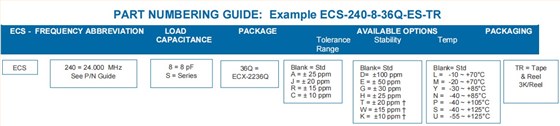

| 晶振编码查询 | 厂家 | 型号 | 频率 | 工作温度 | 包装/封装 |
| ECS-160-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-240-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 24MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-250-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 25MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-260-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 26MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-270-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 27MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-320-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 32MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-270-8-36CKM-TR | ECS Crystal | ECX-2236 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-240-8-36CKM-TR | ECS Crystal | ECX-2236 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-300-8-36CKM-TR | ECS Crystal | ECX-2236 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-8-36CKM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-320-8-36CKM-TR | ECS Crystal | ECX-2236 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-8-36CKM-TR | ECS Crystal | ECX-2236 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-400-8-36CKM | ECS Crystal | ECX-2236 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 20MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-300-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 30MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-120-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 12MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-245.7-10-36Q-ES-TR | ECS晶振 | ECX-2236Q | 24.576MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-192-8-36CKM-TR | ECS Crystal | ECX-2236 | 19.2MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-260-8-36CKM-TR | ECS Crystal | ECX-2236 | 26MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-480-8-36CKM | ECS Crystal | ECX-2236 | 48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-10-36-JTM-TR | ECS Crystal | ECX-2236 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-300-10-36-JGN-TR | ECS Crystal | ECX-2236 | 30MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-160-10-36-JTM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-192-10-36-JGN-TR | ECS Crystal | ECX-2236 | 19.2MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-200-10-36-JGN-TR | ECS Crystal | ECX-2236 | 20MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-240-10-36-JTM-TR | ECS Crystal | ECX-2236 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-240-10-36-JGN-TR | ECS Crystal | ECX-2236 | 24MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-320-10-36-JGN-TR | ECS Crystal | ECX-2236 | 32MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-160-10-36-JGN-TR | ECS Crystal | ECX-2236 | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-250-8-36CKM-TR | ECS Crystal | ECX-2236 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-184-8-36CKM-TR | ECS Crystal | ECX-2236 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
