5032mm,24MHZ,FMXMC3S-118FFB-24.000000M-CM,FMI寻呼机晶振

5032mm,24MHZ,FMXMC3S-118FFB-24.000000M-CM,FMI寻呼机晶振,四脚贴片晶振,欧美无源晶振,石英晶体谐振器,5032mm贴片晶振,FMXMC3S系列晶体,24MHZ石英晶振,无源晶体,贴片石英晶体,尺寸5.0x3.2mm,频率24MHZ,负载18pF,工作温度-20~+70°C,低老化晶振,低损耗晶振,高性能晶振,智能手机晶振,移动电话晶振,数字音频晶振,寻呼机晶振.

5032mm,24MHZ,FMXMC3S-118FFB-24.000000M-CM,FMI寻呼机晶振,四脚贴片晶振,欧美无源晶振,石英晶体谐振器,5032mm贴片晶振,FMXMC3S系列晶体,24MHZ石英晶振,无源晶体,贴片石英晶体,尺寸5.0x3.2mm,频率24MHZ,负载18pF,工作温度-20~+70°C,低老化晶振,低损耗晶振,高性能晶振,智能手机晶振,移动电话晶振,数字音频晶振,寻呼机晶振.

5032mm,24MHZ,FMXMC3S-118FFB-24.000000M-CM,FMI寻呼机晶振特点:

表面贴装陶瓷组件。

Micro 5032进口晶振/超薄

高可靠性

紧密稳定性

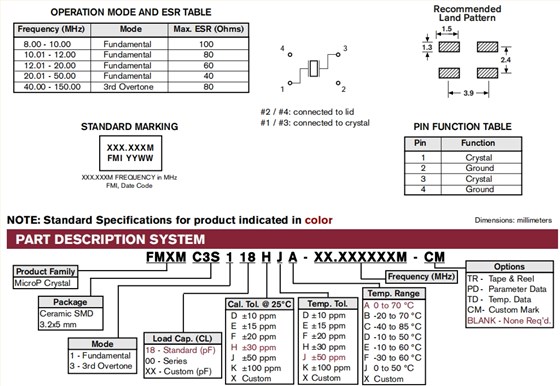

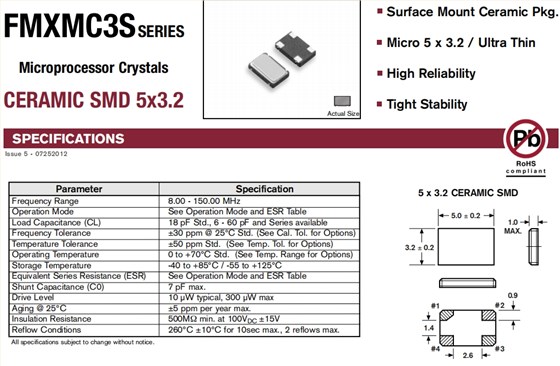

5032mm,24MHZ,FMXMC3S-118FFB-24.000000M-CM,FMI寻呼机晶振 参数表

Parameter								Specification
Frequency Range								24.00 MHz
Operation Mode								See Operation Mode and ESR Table
Load Capacitance (CL)								18 pF Std., 6 - 60 pF and Series available
Frequency Tolerance								±30 ppm @ 25°C Std. (See Cal. Tol. for Options)
Temperature Tolerance								±50 ppm Std.(See Temp. Tol. for Options)
Operating Temperature								0 to +70°C Std.(See Temp. Range for Options)
Storage Temperature								-40 to +85°C / -55 to +125°C
Equivalent Series Resistance (ESR)								See Operation Mode and ESR Table
Shunt Capacitance (C0)								7 pF max.
Drive Level								10 µWtypical, 300 µW max
Aging @ 25°C								±5 ppm per year max.
Insulation Resistance								500MΩ min. at 100VDC±15V
Reflow Conditions								260°C ±10°C for 10sec max., 2 reflows max.

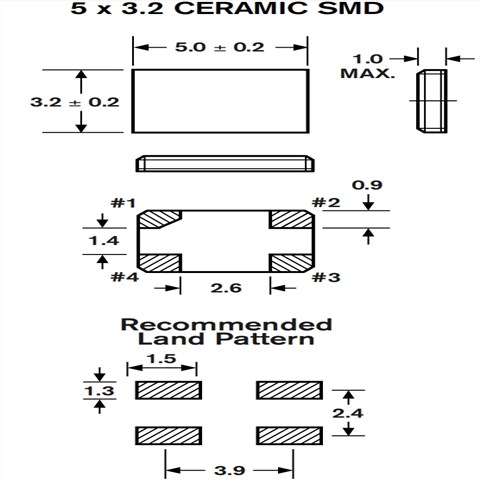

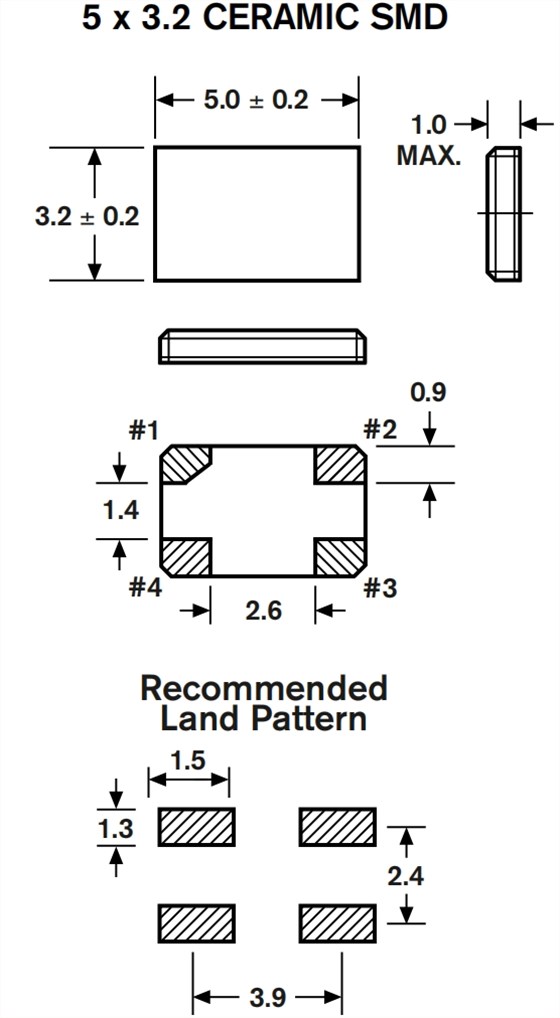

5032mm,24MHZ,FMXMC3S-118FFB-24.000000M-CM,FMI寻呼机晶振 尺寸图
