Q22FA12800116数据手册\FA-128\2016mm\32MHZ\可穿戴设备

当前位置：首页 » 日本进口晶振 » 爱普生晶振 » Q22FA12800116数据手册\FA-128\2016mm\32MHZ\可穿戴设备

$Q22FA12800116数据手册\FA-128\2016mm\32MHZ\可穿戴设备$

prevnext

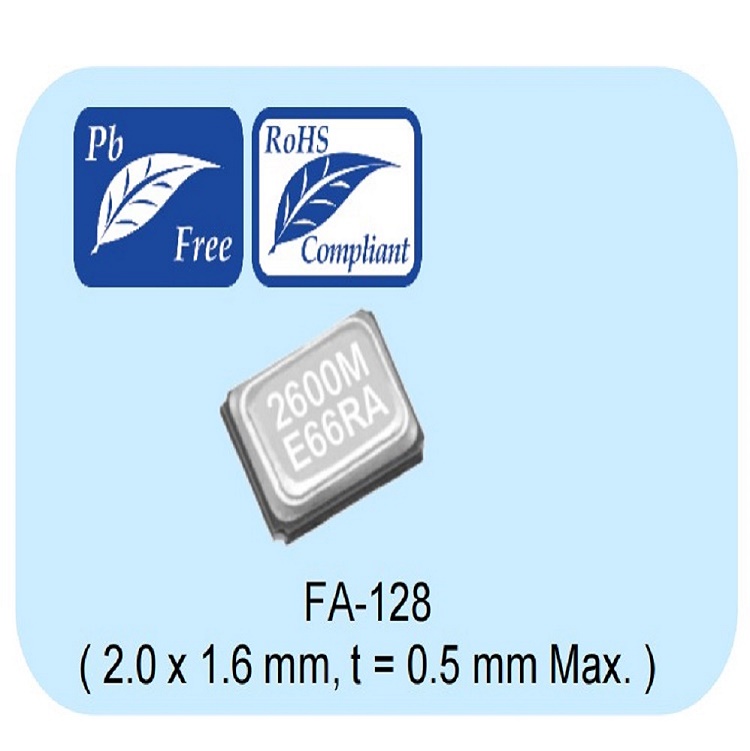

Q22FA12800116数据手册\FA-128\2016mm\32MHZ\可穿戴设备

频率：32MHZ

尺寸：2.0*1.6mm

Q22FA12800116数据手册\FA-128\2016mm\32MHZ\可穿戴设备，尺寸为2016mm,频率为32MHZ,负载电容12pF,工作温度-20to+70°C，日本爱普生晶振，EPSON晶振,无源贴片晶振,小尺寸晶振,石英晶体,水晶振动子，贴片石英晶体，SMD晶振，石英晶体谐振器，小型通信模块专用晶振，消费电子晶振，工业应用晶振，可穿戴设备晶振，MCU时钟晶振，Q22FA12800090无源谐振器，Q22FA12800100贴片晶体。

贴片晶振产品主要应用领域：小型通信模块，用于消费和工业应用，可穿戴设备以及MCU时钟，无线通信，可视化智能家居，蓝牙音响等领域。Q22FA12800116数据手册\FA-128\2016mm\32MHZ\可穿戴设备.

订购热线：0755-27838351

FA-128 Q22FA12800116数据手册\FA-128\2016mm\32MHZ\可穿戴设备，尺寸为2016mm,频率为32MHZ,负载电容12pF,工作温度-20to+70°C，日本爱普生晶振，EPSON晶振,无源贴片晶振,小尺寸晶振,石英晶体,水晶振动子，贴片石英晶体，SMD晶振，石英晶体谐振器，小型通信模块专用晶振，消费电子晶振，工业应用晶振，可穿戴设备晶振，MCU时钟晶振，Q22FA12800090无源谐振器，Q22FA12800100贴片晶体。

Q22FA12800116数据手册\FA-128\2016mm\32MHZ\可穿戴设备 参数表

爱普生晶振	单位	FA-128晶振	石英晶振基本条件
标准频率	f_nom	27MHZ	标准频率
储存温度	T_stg	-40°C ～ +125°C	裸存
工作温度	T_use	-40°C ～ +85°C	标准温度
激励功率	DL	200μW Max.	推荐:1μW ～ 100μW
频率公差	f_— l	±50 × 10-6 (标准), (±15 × 10-6 ～ ±50 × 10-6 可用)	+25°C 对于超出标准的规格说明, 请联系我们以便获取相关的信息, http://www.ndkcrystal.net/
频率温度特征	f_tem	±30 × 10-6/-20°C ～ +70°C	超出标准的规格请联系我们.
负载电容	CL	6PF	不同负载电容要求,请联系我们.
串联电阻(ESR)	R1	如下表所示	-40°C — +85°C, DL = 100μW
频率老化	f_age	±5 × 10-6 / year Max.	+25°C,第一年

Q22FA12800116数据手册\FA-128\2016mm\32MHZ\可穿戴设备 尺寸图

Q22FA12800116晶振特点

FA-128已经作为通信模块的参考时钟商业化要求精度高，并作为时钟用于无线通信和微型计算机的应用，需要小型化(TWS(真无线立体声)，智能手表等)。采用多年培养的元素加工技术制造的产品有助于改进客户系统的性能。

更多相关日本精工爱普生晶振型号

编码	尺寸	型号	频率	负载	频率 @+25°C	工作温度
Q22FA12800002	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	12 pF	+/-50 ppm	-20 to +70 °C
Q22FA12800007	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	10 pF	+/-15 ppm	-20 to +85 °C
Q22FA12800008	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	10 pF	+/-30 ppm	-20 to +70 °C
Q22FA12800010	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800011	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800013	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	16 pF	+/-30 ppm	-25 to +70 °C
Q22FA12800014	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	16 pF	+/-30 ppm	-40 to +85 °C
Q22FA12800018	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800020	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800021	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800022	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800024	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800025	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800026	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800030	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	+/-30 ppm	-20 to +70 °C
Q22FA12800031	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	18 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800034	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	8 pF	+/-15 ppm	-30 to +70 °C
Q22FA12800035	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800037	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	+/-50 ppm	-20 to +75 °C
Q22FA12800038	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-50 ppm	-20 to +75 °C
Q22FA12800043	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800044	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	16 pF	+/-15 ppm	-40 to +85 °C
Q22FA12800045	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	8.5 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800047	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	12 pF	+/-10 ppm	-20 to +85 °C
Q22FA12800053	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	+/-10 ppm	-20 to +70 °C
Q22FA12800054	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	+/-10 ppm	-20 to +70 °C
Q22FA12800061	2 x 1.6 x 0.5mm	FA-128	44.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800062	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	8 pF	+/-30 ppm	-20 to +70 °C
Q22FA12800064	2 x 1.6 x 0.5mm	FA-128	37.400000 MHz	18 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800067	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	7 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800070	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	7 pF	+/-10 ppm	-20 to +70 °C
Q22FA12800085	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800089	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	8 pF	+/-30 ppm	-30 to +85 °C
Q22FA12800090	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800091	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	7 pF	+/-50 ppm	-20 to +70 °C
Q22FA12800092	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800094	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800099	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA12800100	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA12800101	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800105	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12.5 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800107	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-50 ppm	-20 to +75 °C
Q22FA12800108	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800112	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-15 ppm	-20 to +75 °C
Q22FA12800114	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800116	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	12 pF	+/-15 ppm	-20 to +70 °C
Q22FA12800119	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	10 pF	+/-20 ppm	-20 to +75 °C
Q22FA12800120	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800121	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	15 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800125	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	6 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800126	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	8 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800127	2 x 1.6 x 0.5mm	FA-128 SMD晶振	24.576000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800129	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	12 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800131	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800132	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	15 pF	+/-10 ppm	-20 to +70 °C
Q22FA12800135	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800137	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	9 pF	+/-20 ppm	-30 to +85 °C
Q22FA12800140	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800141	2 x 1.6 x 0.5mm	FA-128	20.000000 MHz	10 pF	+/-10 ppm	-20 to +70 °C
Q22FA12800143	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	6 pF	+/-50 ppm	-30 to +85 °C
Q22FA12800145	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800146	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	7 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800147	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800148	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA12800149	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800150	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800152	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800156	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	6 pF	+/-30 ppm	-30 to +85 °C
Q22FA12800158	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800159	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	12 pF	+/-27 ppm	-20 to +70 °C
Q22FA12800160	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	7 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800166	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800168	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12.5 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800169	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	7 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800170	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
