X1M0002110003,EG-2121CB智能穿戴晶振,EPSON差分有源晶振

当前位置：首页 » 日本进口晶振 » 爱普生晶振 » X1M0002110003,EG-2121CB智能穿戴晶振,EPSON差分有源晶振

prevnext

X1M0002110003,EG-2121CB智能穿戴晶振,EPSON差分有源晶振

频率：156.25MHZ

尺寸：5.0x3.2mm

X1M0002110003,EG-2121CB智能穿戴晶振,EPSON差分有源晶振，尺寸5.0x3.2mm，频率156.25MHZ，输出逻辑LV-PECL，日本进口晶振，爱普生EPSON有源晶振，六脚差分晶振，LV-PECL输出晶振，差分晶体振荡器，5032差分石英晶振，贴片差分晶振，有源差分振荡器，156.25MHZ差分晶振，低抖动差分振荡器，低相位差分晶振，低耗能差分晶振，低电压差分晶振，低损耗差分晶振，低相噪差分晶振，高质量差分晶振，智能穿戴设备差分晶振，数字音频差分晶振，无线模块差分晶振，影音系统差分晶振，无线路由器差分晶振，多媒体设备差分晶振，测试测量差分晶振，智能家居差分晶振，具有低相位相噪高质量的特点。

LVPECL差分晶振产品比较广泛应用于智能穿戴设备，数字音频，无线模块，影音系统，无线路由器，多媒体设备，测试测量，智能家居等领域。X1M0002110003,EG-2121CB智能穿戴晶振,EPSON差分有源晶振.

订购热线：0755-27838351

X1M0002110003,EG-2121CB智能穿戴晶振,EPSON差分有源晶振 参数表

EG-2102CB 参数png

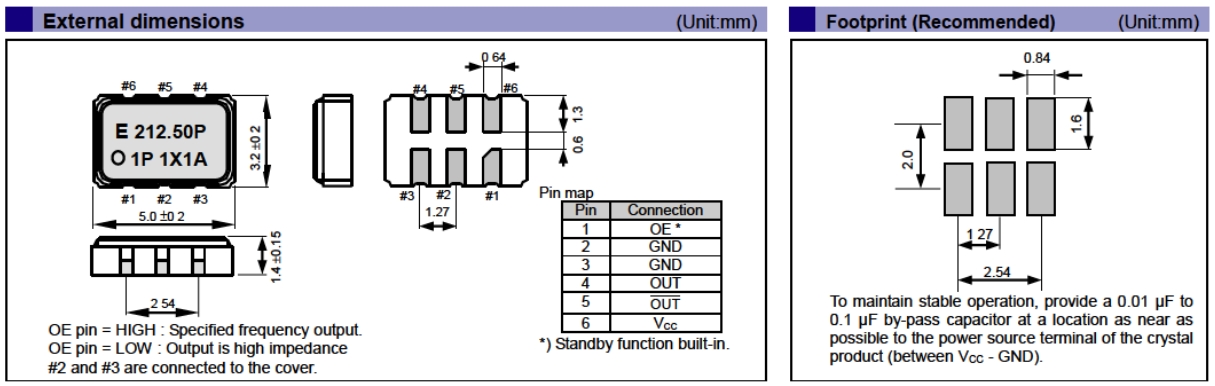

X1M0002110003,EG-2121CB智能穿戴晶振,EPSON差分有源晶振 尺寸图

X1M0002110003,EG-2121CB智能穿戴晶振,EPSON差分有源晶振

差分振荡器产品特点：

频率范围：100MHZ~700MHZ

电压：3.3V

输出：LVPECL or LVDS

尺寸为5.00x3.20x1.40mm

编码	品牌	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0023510013	爱普生晶振	SG-770SCD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510014	爱普生晶振	SG-770SCD	187.500000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510019	爱普生晶振	SG-770SCD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510026	爱普生晶振	SG-770SCD	62.500000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510027	爱普生晶振	SG-770SCD	133.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510028	爱普生晶振	SG-770SCD	106.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510029	爱普生晶振	SG-770SCD	155.520000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510032	爱普生晶振	SG-770SCD	133.330000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510033	爱普生晶振	SG-770SCD	148.500000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510035	爱普生晶振	SG-770SCD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510044	爱普生晶振	SG-770SCD	155.520000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510053	爱普生晶振	SG-770SCD	50.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510122	爱普生晶振	SG-770SCD	80.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510123	爱普生晶振	SG-770SCD	133.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510125	爱普生晶振	SG-770SCD	150.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510126	爱普生晶振	SG-770SCD	50.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-20 to 70 °C
X1G0023510128	爱普生晶振	SG-770SCD	80.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-20 to 70 °C
X1G0023510129	爱普生晶振	SG-770SCD	53.125000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510130	爱普生晶振	SG-770SCD	133.333300 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510131	爱普生晶振	SG-770SCD	75.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510132	爱普生晶振	SG-770SCD	98.304000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510808	爱普生晶振	SG-770SCD	200.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023610004	爱普生晶振	SG-770SDD	155.520000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610007	爱普生晶振	SG-770SDD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610008	爱普生晶振	SG-770SDD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610012	爱普生晶振	SG-770SDD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1G0023610103	爱普生晶振	SG-770SDD	122.880000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610105	爱普生晶振	SG-770SDD	150.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0028210009	爱普生晶振	SG-771PCD	156.253906 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210010	爱普生晶振	SG-771PCD	156.258600 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-10 to 70 °C
X1G0028210107	爱普生晶振	SG-771PCD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210109	爱普生晶振	SG-771PCD	161.132800 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210115	爱普生晶振	SG-771PCD	106.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210116	爱普生晶振	SG-771PCD	133.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210117	爱普生晶振	SG-771PCD	133.333300 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210118	爱普生晶振	SG-771PCD	98.304000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210121	爱普生晶振	SG-771PCD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1M0002110001	爱普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0002110002	爱普生晶振	EG-2121CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0002110003	爱普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0002110004	爱普生晶振	EG-2121CB	322.265625 MHz	5032振荡器	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0004110002	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110005	爱普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110006	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110007	爱普生晶振	MG7050EAN	669.325580 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110008	爱普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110009	爱普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110010	爱普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110011	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110012	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110013	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110014	爱普生晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110015	爱普生晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110016	爱普生晶振	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110017	爱普生晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110018	爱普生晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110019	爱普生晶振	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110020	爱普生晶振	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110021	爱普生晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110022	爱普生晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110023	爱普生晶振	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110024	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110025	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0004110026	爱普生晶振	MG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
