NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器
频率:32.768KHZ
尺寸:2.5x2.0mm
NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器,尺寸2.5x2.0mm,频率32.768KHZ,输出逻辑CMOS,32.768KHZ有源晶振,2520mm有源晶振,时钟晶体振荡器,SMD振荡器,SPXO晶振,石英晶体振荡器,四脚有源晶振,CMOS输出晶振,摄像头专用有源晶振,汽车导航系统有源晶振,汽车音响专用晶振,仪器设备有源晶振,汽车氛围灯专用有源晶振,低电压有源晶振,低抖动有源晶振,低功耗有源晶振,低耗能有源晶振,高品质有源晶振,高性能有源晶振,具有低电压低抖动的特点。
有源贴片晶振产品可广泛应用各大应用领域,适用于汽车导航系统、汽车音响设备和摄像头,仪器设备,汽车氛围灯等应用场景。NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器.
NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器,尺寸2.5x2.0mm,频率32.768KHZ,输出逻辑CMOS,32.768KHZ有源晶振,2520mm有源晶振,时钟晶体振荡器,SMD振荡器,SPXO晶振,石英晶体振荡器,四脚有源晶振,CMOS输出晶振,摄像头专用有源晶振,汽车导航系统有源晶振,汽车音响专用晶振,仪器设备有源晶振,汽车氛围灯专用有源晶振,低电压有源晶振,低抖动有源晶振,低功耗有源晶振,低耗能有源晶振,高品质有源晶振,高性能有源晶振,具有低电压低抖动的特点。
有源贴片晶振产品可广泛应用各大应用领域,适用于汽车导航系统、汽车音响设备和摄像头,仪器设备,汽车氛围灯等应用场景。NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器.

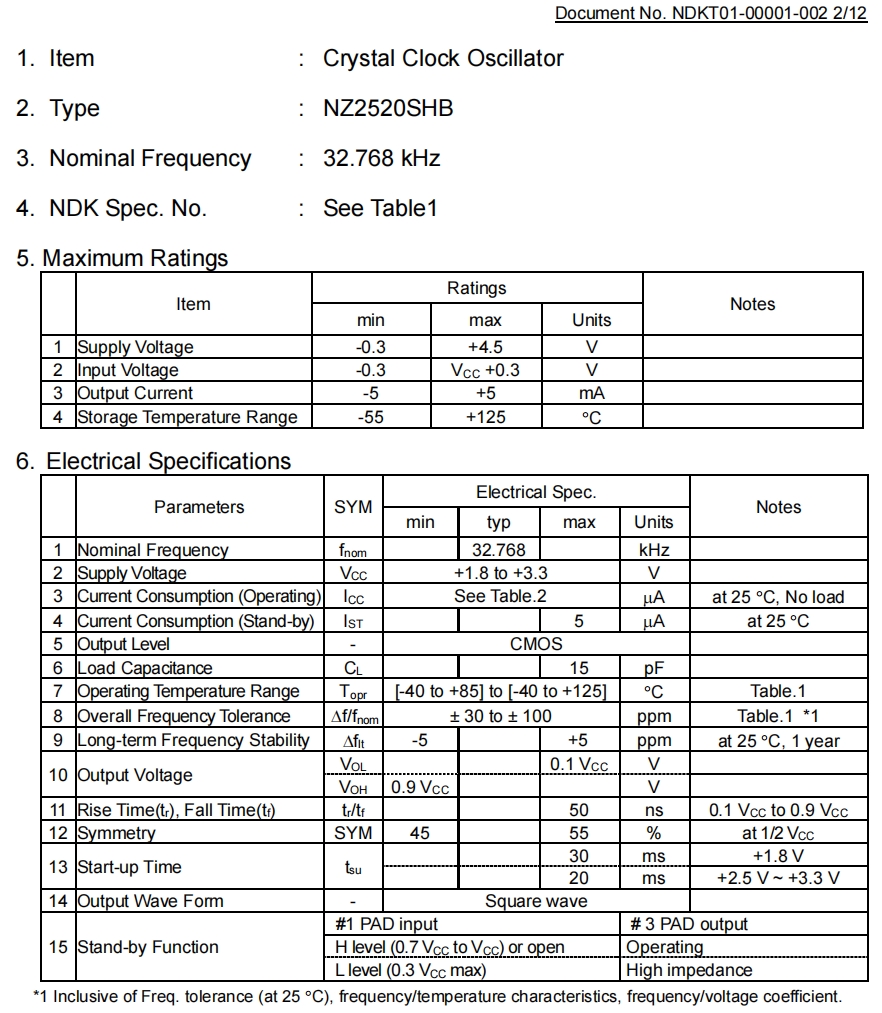

NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器 参数表
Item | Ratings | Notes | |||||||||||||||
min | max | Units | |||||||||||||||
Supply Voltage | -0.3 | +4.5 | V | ||||||||||||||
Input Voltage | -0.3 | VCC +0.3 | V | ||||||||||||||
Output Current | -5 | +5 | mA | ||||||||||||||
Storage Temperature Range | -55 | +125 | 。C |
Parameters | SYM | Electrical Spec. | Notes | ||||||||||||||
min | typ | max | Units | ||||||||||||||
Nominal Frequency | fnom | 32.768 | kHz | ||||||||||||||
Supply Voltage | VCC | +1.8 to +3.3 | V | ||||||||||||||
Current Consumption (Operating) | ICC | See Table.2 | μA | at 25 。C, No load | |||||||||||||
Current Consumption (Stand-by) | IST | 5 | μA | at 25 。C | |||||||||||||
Output Level | - | CMOS | |||||||||||||||
Load Capacitance | CL | 15 | pF | ||||||||||||||
Operating Temperature Range | Topr | [-40 to +85] to [-40 to +125] | 。C | Table.1 | |||||||||||||
Overall Frequency Tolerance | Δf/fnom | ± 30 to ± 100 | ppm | Table.1 * 1 | |||||||||||||
Long-term Frequency Stability | Δflt | -5 | +5 | ppm | at 25 。C, 1 year | ||||||||||||
Output Voltage | VOL | 0.1 VCC | V | ||||||||||||||
VOH | 0.9 VCC | V | |||||||||||||||
Rise Time(tr), Fall Time(tf) | tr/tf | 50 | ns | 0.1 VCC to 0.9 VCC | |||||||||||||
Symmetry | SYM | 45 | 55 | % | at 1/2 VCC | ||||||||||||
Start-up Time | tsu | 30 | ms | +1.8 V | |||||||||||||
20 | ms | +2.5 V ~ +3.3 V | |||||||||||||||
Output Wave Form | - | Square wave | |||||||||||||||
Stand-by Function | #1 PAD input | # 3 PAD output | |||||||||||||||
H level (0.7 VCC to VCC) or open | Operating | ||||||||||||||||
L level (0.3 VCC max) | High impedance |

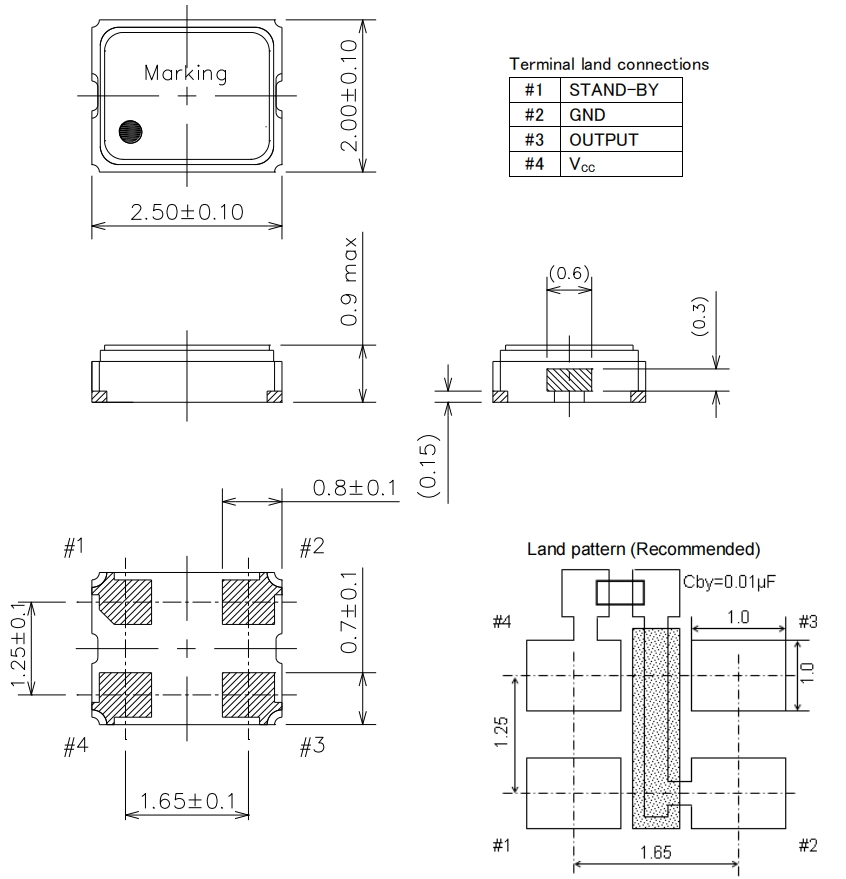

NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器 尺寸图
NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器

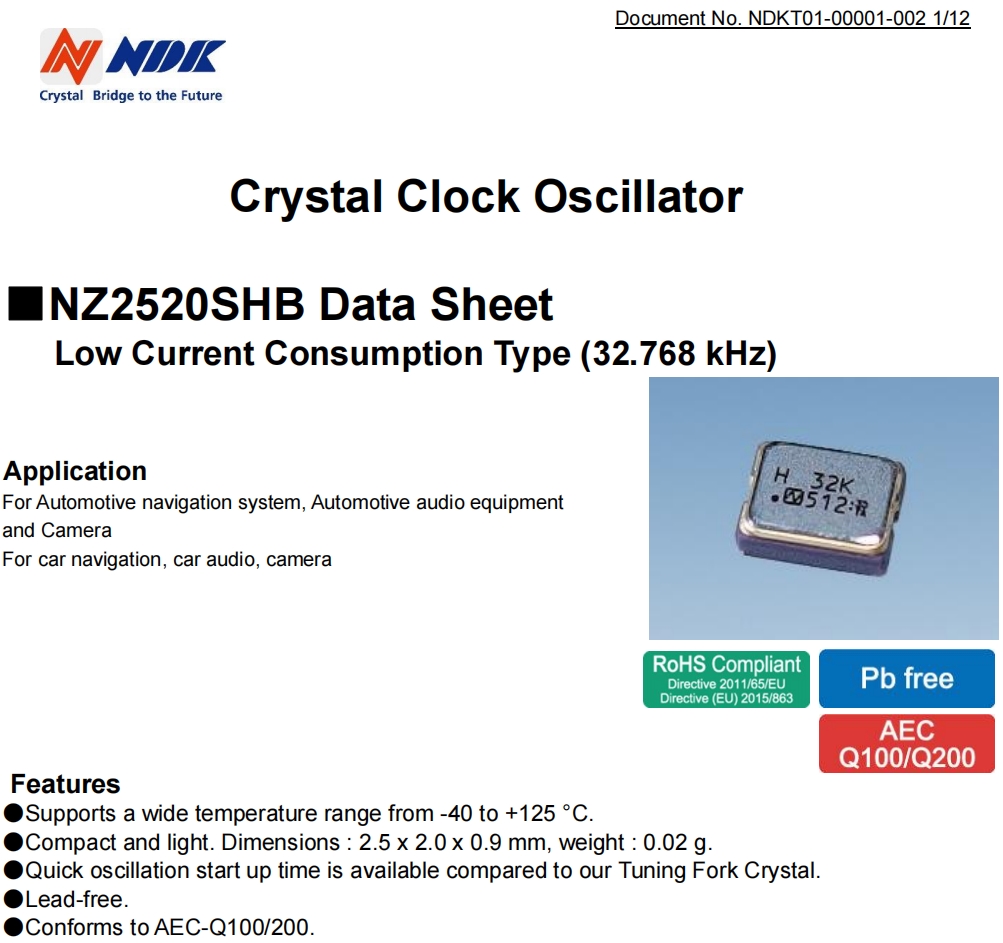

NDK振荡器产品特点:
支持-40至+125°C的宽温度范围。
小巧轻便。尺寸:2.5 x 2.0 x 0.9毫米,重量:0.02克。
与我们的音叉水晶相比,可提供快速振荡启动时间。
无铅。
符合AEC-Q100/200。
Model | Nominal frequency[MHz] | Specification number | Manufacturer | Package size(LxW)[mm] | Output specification | Operating temperature rang[℃] |
NP3225SCA | 125MHZ | NSC5392B | NDK晶振 | 3.2x2.5 | HCSL | -40~+105 |
NP3225SCA | 156.25MHZ | NSC5392B | NDK晶振 | 3.2x2.5 | HCSL | -40~+105 |
NZ1612SHB | 0.032768MHZ | NSC5154A | NDK晶振 | 1.6x1.2 | CMOS | -40~+125 |
NZ1612SHB | 0.032768MHZ | NSC5154B | NDK晶振 | 1.6x1.2 | CMOS | -40~+125 |
NZ1612SHB | 0.032768MHZ | NSC5154C | NDK晶振 | 1.6x1.2 | CMOS | -40~+125 |
NZ1612SHB | 0.032768MHZ | NSC5154D | NDK晶振 | 1.6x1.2 | CMOS | -40~+125 |
NZ1612SHB | 0.032768MHZ | NSC5153A | NDK晶振 | 1.6x1.2 | CMOS | -40~+105 |
NZ1612SHB | 0.032768MHZ | NSC5153B | NDK晶振 | 1.6x1.2 | CMOS | -40~+105 |
NZ1612SHB | 0.032768MHZ | NSC5153C | NDK晶振 | 1.6x1.2 | CMOS | -40~+105 |
NZ1612SHB | 0.032768MHZ | NSC5153D | NDK晶振 | 1.6x1.2 | CMOS | -40~+105 |
NZ1612SHB | 0.032768MHZ | NSC5102A | NDK晶振 | 1.6x1.2 | CMOS | -40~+85 |
NZ1612SHB | 0.032768MHZ | NSC5102B | NDK晶振 | 1.6x1.2 | CMOS | -40~+85 |
NZ1612SHB | 0.032768MHZ | NSC5102C | NDK晶振 | 1.6x1.2 | CMOS | -40~+85 |
NZ1612SHB | 0.032768MHZ | NSC5102D | NDK晶振 | 1.6x1.2 | CMOS | -40~+85 |
NZ2016SHB | 0.032768MHZ | NSC5132A | NDK晶振 | 2.0x1.6 | CMOS | -40~+125 |
NZ2016SHB | 0.032768MHZ | NSC5132B | NDK晶振 | 2.0x1.6 | CMOS | -40~+125 |
NZ2016SHB | 0.032768MHZ | NSC5132C | NDK晶振 | 2.0x1.6 | CMOS | -40~+125 |
NZ2016SHB | 0.032768MHZ | NSC5132D | NDK晶振 | 2.0x1.6 | CMOS | -40~+125 |
NZ2016SHB | 0.032768MHZ | NSC5133A | NDK晶振 | 2.0x1.6 | CMOS | -40~+105 |
NZ2016SHB | 0.032768MHZ | NSC5133B | NDK晶振 | 2.0x1.6 | CMOS | -40~+105 |
NZ2016SHB | 0.032768MHZ | NSC5133C | NDK晶振 | 2.0x1.6 | CMOS | -40~+105 |
NZ2016SHB | 0.032768MHZ | NSC5133D | NDK晶振 | 2.0x1.6 | CMOS | -40~+105 |
NZ2016SHB | 0.032768MHZ | NSC5134A | NDK晶振 | 2.0x1.6 | CMOS | -40~+85 |
NZ2016SHB | 0.032768MHZ | NSC5134B | NDK晶振 | 2.0x1.6 | CMOS | -40~+85 |
NZ2016SHB | 0.032768MHZ | NSC5134C | NDK晶振 | 2.0x1.6 | CMOS | -40~+85 |
NZ2016SHB | 0.032768MHZ | NSC5134D | NDK晶振 | 2.0x1.6 | CMOS | -40~+85 |
NZ2520SHB | 0.032768MHZ | NSC5135A | NDK晶振 | 2.5x2.0 | CMOS | -40~+125 |
NZ2520SHB | 0.032768MHZ | NSC5135B | NDK晶振 | 2.5x2.0 | CMOS | -40~+125 |
NZ2520SHB | 0.032768MHZ | NSC5135C | NDK晶振 | 2.5x2.0 | CMOS | -40~+125 |
NZ2520SHB | 0.032768MHZ | NSC5135D | NDK晶振 | 2.5x2.0 | CMOS | -40~+125 |
NZ2520SHB | 0.032768MHZ | NSC5136A | NDK晶振 | 2.5x2.0 | CMOS | -40~+105 |
NZ2520SHB | 0.032768MHZ | NSC5136B | NDK晶振 | 2.5x2.0 | CMOS | -40~+105 |
NZ2520SHB | 0.032768MHZ | NSC5136C | 日本NDK晶振 | 2.5x2.0 | CMOS | -40~+105 |
NZ2520SHB | 0.032768MHZ | NSC5136D | NDK晶振 | 2.5x2.0 | CMOS | -40~+105 |
NZ2520SHB | 0.032768MHZ | NSC5137A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SHB | 0.032768MHZ | NSC5137B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SHB | 0.032768MHZ | NSC5137C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SHB | 0.032768MHZ | NSC5137D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SHB | 0.032768MHZ | NSC5308A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SHB | 0.032768MHZ | NSC5308B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SHB | 0.032768MHZ | NSC5308C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SHB | 0.032768MHZ | NSC5308D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2016SHA | 0.032768MHZ | NSC5297A | NDK晶振 | 2.0x1.6 | CMOS | -40~+125 |
NZ2016SHA | 0.032768MHZ | NSC5297B | NDK晶振 | 2.0x1.6 | CMOS | -40~+125 |
NZ2016SHA | 0.032768MHZ | NSC5297C | NDK晶振 | 2.0x1.6 | CMOS | -40~+125 |
NZ2016SHA | 0.032768MHZ | NSC5297D | NDK晶振 | 2.0x1.6 | CMOS | -40~+125 |
NZ2016SHA | 0.032768MHZ | NSC5298A | NDK晶振 | 2.0x1.6 | CMOS | -40~+105 |
NZ2016SHA | 0.032768MHZ | NSC5298B | NDK晶振 | 2.0x1.6 | CMOS | -40~+105 |
NZ2016SHA | 0.032768MHZ | NSC5298C | NDK晶振 | 2.0x1.6 | CMOS | -40~+105 |
NZ2016SHA | 0.032768MHZ | NSC5298D | NDK晶振 | 2.0x1.6 | CMOS | -40~+105 |
NZ2016SHA | 0.032768MHZ | NSC5299A | NDK晶振 | 2.0x1.6 | CMOS | -40~+85 |
NZ2016SHA | 0.032768MHZ | NSC5299B | NDK晶振 | 2.0x1.6 | CMOS | -40~+85 |
NZ2016SHA | 0.032768MHZ | NSC5299C | NDK晶振 | 2.0x1.6 | CMOS | -40~+85 |
NZ2016SHA | 0.032768MHZ | NSC5299D | NDK晶振 | 2.0x1.6 | CMOS | -40~+85 |
NZ2520SHA | 0.032768MHZ | NSC5271A | NDK晶振 | 2.5x2.0 | CMOS | -40~+125 |
NZ2520SHA | 0.032768MHZ | NSC5271B | NDK晶振 | 2.5x2.0 | CMOS | -40~+125 |
NZ2520SHA | 0.032768MHZ | NSC5271C | NDK晶振 | 2.5x2.0 | CMOS | -40~+125 |
NZ2520SHA | 0.032768MHZ | NSC5271D | NDK晶振 | 2.5x2.0 | CMOS | -40~+125 |
NZ2520SHA | 0.032768MHZ | NSC5272A | NDK晶振 | 2.5x2.0 | CMOS | -40~+105 |
NZ2520SHA | 0.032768MHZ | NSC5272B | NDK晶振 | 2.5x2.0 | CMOS | -40~+105 |
NZ2520SHA | 0.032768MHZ | NSC5272C | NDK晶振 | 2.5x2.0 | CMOS | -40~+105 |
NZ2520SHA | 0.032768MHZ | NSC5272D | NDK晶振 | 2.5x2.0 | CMOS | -40~+105 |
NZ2520SHA | 0.032768MHZ | NSC5273A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SHA | 0.032768MHZ | NSC5273B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SHA | 0.032768MHZ | NSC5273C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SHA | 0.032768MHZ | NSC5273D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
