AAU16M000000FLH16H,6035mm,StandardCrystal,16MHZ

当前位置：首页 » 欧美进口晶振品牌 » Standard晶振 » AAU16M000000FLH16H,6035mm,StandardCrystal,16MHZ

prevnext

AAU16M000000FLH16H,6035mm,StandardCrystal,16MHZ

频率：16MHZ

尺寸：6.0x3.5mm

AAU16M000000FLH16H,6035mm,StandardCrystal,16MHZ,欧美进口晶振,石英振动子,四脚无源晶振,无源石英晶振,6035晶体谐振器,SMD晶振,16MHZ石英晶振,轻薄型晶振,尺寸6.0x3.5mm,频率16MHZ,负载16pF,工作温度-20~+70℃,耐高温晶振,环保型晶振,低功耗晶振,低损耗晶振,低成本晶振,高性能晶振,微处理器晶振,仪器仪表晶振,网络设备晶振,笔记本电脑晶振,游戏设备晶振,照相机晶振,投影仪晶振.

订购热线：0755-27838351

AAU16M000000FLH16H,6035mm,StandardCrystal,16MHZ特点:

微型贴片晶振单元

符合RoHS无铅

非常低的老化

AAU16M000000FLH16H,6035mm,StandardCrystal,16MHZ 参数表

Frequency Range

16 MHz

Frequency Tolerance

± 50 PPM (Standard)

Frequency Stability

± 50 PPM ( Standard )

Operating Temperature Range

0EC to 70EC ( Standard )

Load Capacitance ( CL )

12pF to 50pF & Series

Shunt Capacitance

7pF Maximum

Drive Lavel

100uWatt Maximum

Aging

±3 PPM per year Maximum

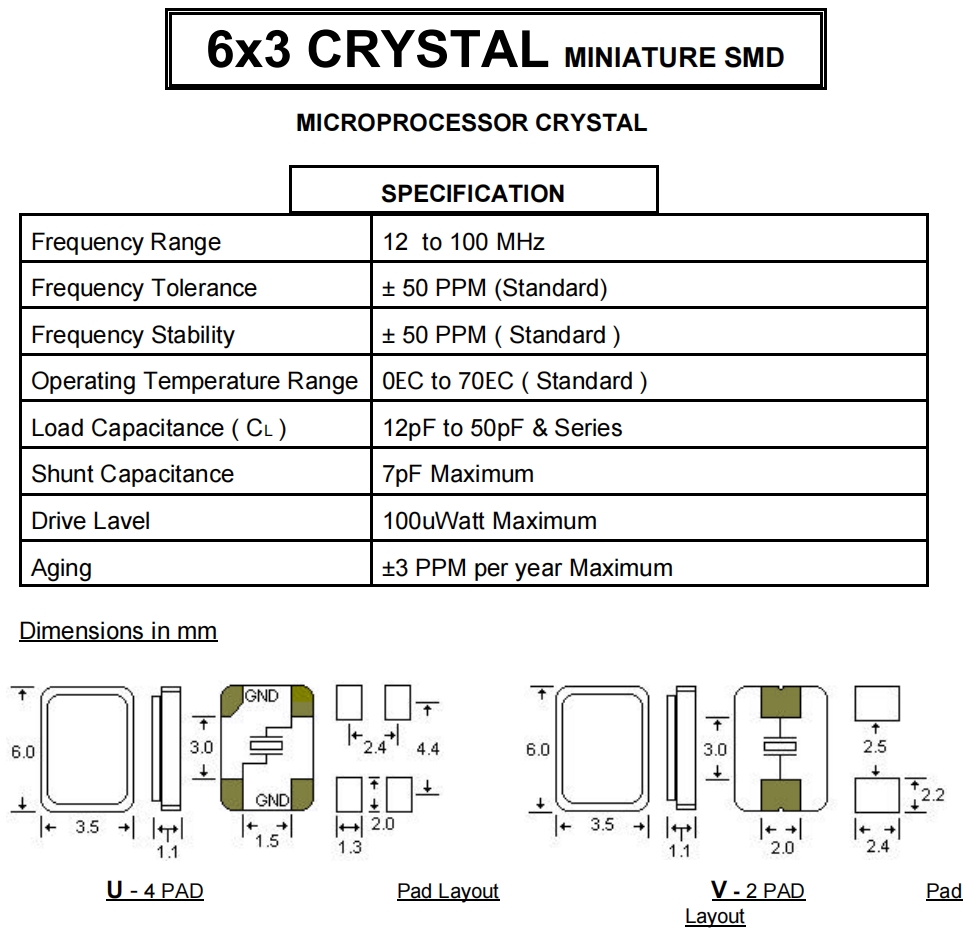

AAU16M000000FLH16H,6035mm,StandardCrystal,16MHZ 尺寸图
