ELM8-32.000MHz-9-R40-D1G-T,AELCrystal,ELM8平板电脑晶振
频率：32MHZ
尺寸：3.2x2.5mm
ELM8-32.000MHz-9-R40-D1G-T,AELCrystal,ELM8平板电脑晶振，尺寸3.2x2.5mm，频率32MHZ，英国进口晶振，艾尔石英晶体，3225mm贴片晶振，无源晶体，水晶振动子，石英贴片晶振，石英晶体谐振器，石英晶振，SMD晶振，四脚贴片晶振，32MHZ贴片晶振，移动通信晶振，网络设备晶振，平板电脑晶振，蓝牙音响晶振，智能家居晶振，便携式设备晶振，小型设备晶振，智能穿戴晶振，低损耗晶振，低功耗晶振，高质量晶振，高频晶振，高性能晶振，具有高质量高频的特点。
贴片晶振产品可满足不同应用程序的需求，比较适合用于移动通信，网络设备，平板电脑，蓝牙音响，智能家居，便携式设备，小型设备，智能穿戴等应用。ELM8-32.000MHz-9-R40-D1G-T,AELCrystal,ELM8平板电脑晶振.
ELM8-32.000MHz-9-R40-D1G-T,AELCrystal,ELM8平板电脑晶振，尺寸3.2x2.5mm，频率32MHZ，英国进口晶振，艾尔石英晶体，3225mm贴片晶振，无源晶体，水晶振动子，石英贴片晶振，石英晶体谐振器，石英晶振，SMD晶振，四脚贴片晶振，32MHZ贴片晶振，移动通信晶振，网络设备晶振，平板电脑晶振，蓝牙音响晶振，智能家居晶振，便携式设备晶振，小型设备晶振，智能穿戴晶振，低损耗晶振，低功耗晶振，高质量晶振，高频晶振，高性能晶振，具有高质量高频的特点。
贴片晶振产品可满足不同应用程序的需求，比较适合用于移动通信，网络设备，平板电脑，蓝牙音响，智能家居，便携式设备，小型设备，智能穿戴等应用。ELM8-32.000MHz-9-R40-D1G-T,AELCrystal,ELM8平板电脑晶振.
ELM8-32.000MHz-9-R40-D1G-T,AELCrystal,ELM8平板电脑晶振 参数表
| STANDARD SPECIFICATIONS | ||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||
| Frequency Range |
32.000 MHz |
|||||||||
|
Operation Mode 8MHz -54MHz 64MHz - 125MHz (Contact Abracon for available frequencies) |
Fundamental 3rd Overtone (Standard Frequencies: 64, 66, 66.6666, 75, 80, 98.304, 100, 125MHz) |
|||||||||
| Operating Temperature | -10°C to +60°C, see options | |||||||||
| Storage Temperature | -55°C to +125°C | |||||||||
| Frequency Tolerance @ 25°C | ± 50PPM, see options | |||||||||
|
Frequency Stability over the Operating Temperature (ref. to +25°C) |
± 50PPM, see options | |||||||||
| Equivalent Series Resistance (ESR) | See Table below | |||||||||
| Shunt Capacitance (C0) | 3.0 pF | |||||||||
| Load Capacitance (CL) | 18 pF, see options | |||||||||
| Drive Level |
10 μW Typ 100 μW |
|||||||||
| Aging (@ 25°C, First Year) | ±2ppm | |||||||||
| Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | |||||||||
| Seal Method | Seam | |||||||||
| RoHS Compliant | Yes | |||||||||
| Pb Free | Yes | |||||||||
| MSL | NA | |||||||||

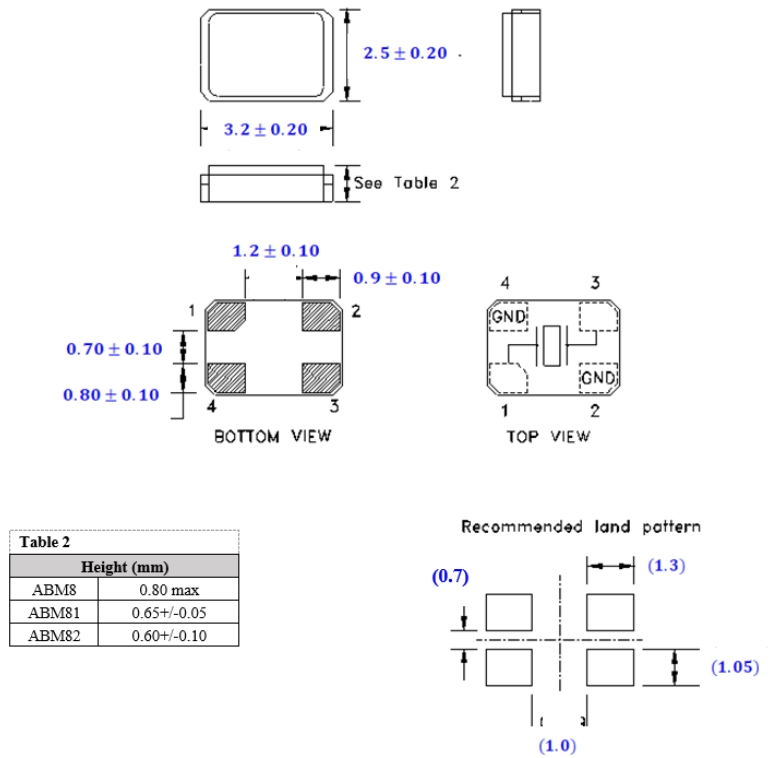

ELM8-32.000MHz-9-R40-D1G-T,AELCrystal,ELM8平板电脑晶振 尺寸图
ELM8-32.000MHz-9-R40-D1G-T,AELCrystal,ELM8平板电脑晶振
产品特点：
SMD石英晶体谐振器
公差：±10ppm可用
工作温度-10°C至+60°C至-40°C至+125°C
| Part | Brand | Length | Width | Height | Operating Temperature | Frequency |
| ELM8-26.000MHz-18-R60-B1U-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 26 MHz |
| ELM8-32.000MHz-16-R40-B1U-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 75°C | 32 MHz |
| ELM8-32.000MHz-9-R40-D1G-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 32 MHz |
| ELS07-32.768kHz-6-T | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| ELS07-32.768kHz-T | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| ELS13-32.768kHz-7-T | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS13-32.768kHz-9-T | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS13-32.768kHz-T | AEL SMD晶振 | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS25-32.768kHz-6-2-T | AEL Crystals | 8mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS25-32.768kHz-T | AEL Crystals | 8mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS06-32.768kHz-9-T | AEL Crystals | 2mm | 1.2mm | 0.6mm | -40°C ~ 85°C | 32.768 kHz |
| ELS05-32.768kHz-9-T | AEL Crystals | 1.6mm | 1mm | 0.5mm | -40°C ~ 85°C | 32.768 kHz |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL Crystals | 1.6mm | 1.2mm | 0.4mm | -40°C ~ 85°C | 24 MHz |
| X10M000000L121 | AEL Crystals | 11.3mm | 4mm | 16mm | -20°C ~ 70°C | 10 MHz |
| X10M000000S065 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -40°C ~ 105°C | 10 MHz |
| X12M000000S081 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -10°C ~ 60°C | 12 MHz |
| X12M000000S096 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 12 MHz |
| X12M000000S118 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 12 MHz |
| X12M582900S001 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -10°C ~ 60°C | 12.5829 MHz |
| X13M560000S024 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -10°C ~ 60°C | 13.56 MHz |
| X14M000000S003 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 14 MHz |
| X14M800000S001 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 14.8 MHz |
| X16M000000S182 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 16 MHz |
| X16M000000S207 | AEL Crystals | 2.5mm | 2mm | 0.5mm | -40°C ~ 85°C | 16 MHz |
| X18M432000S049 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 18.432 MHz |
| X21M948717S005 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 125°C | 21.948717 MHz |
| X24M000000S029 | AEL Crystals | 2.5mm | 2mm | 0.5mm | -30°C ~ 85°C | 24 MHz |
| X24M000000S049 | AEL Crystals | 2.5mm | 2mm | 0.5mm | -40°C ~ 85°C | 24 MHz |
| X24M000000S050 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 24 MHz |
| X24M000000S079 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 24 MHz |
| X24M000000S094 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 24 MHz |
| X24M000000S303 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -30°C ~ 85°C | 24 MHz |
| X26M000000S301 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 26 MHz |
| X30M000000S005 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -20°C ~ 70°C | 30 MHz |
| X32K768L025 | AEL Crystals | 2.1mm | 6.2mm | 13.2mm | -10°C ~ 60°C | 32.768 kHz |
| X32K768L104 | AEL Crystals | 2.9mm | 8mm | 17mm | -10°C ~ 60°C | 32.768 kHz |
| X32K768S003 | AEL Crystals | 7.9mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
