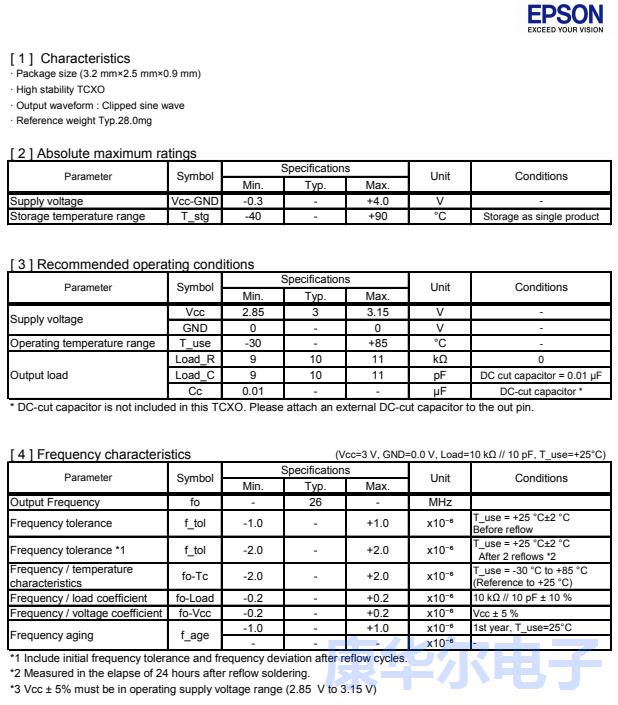

TG-5006CE爱普生晶振X1G004201001700,苹果手机iPhone14卫星连接模块晶振
爱普生有源晶振编码
型号
频率
长X宽X高
输出波
电源电压
工作温度
最大值
输出电平; 出模式; 削顶正弦波; 削峰正弦波;
X1G004131004400
TG-5006CJ
24.576000 MHz
2.00 x 1.60 x 0.73 mm
VC-TCXO~TCXO
3.135 to 3.465 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004131004900
TG-5006CJ
26.000000 MHz
2.00 x 1.60 x 0.73 mm
VC-TCXO~TCXO
1.700 to 1.900 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201000600
TG-5006CE
16.367667 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
1.700 to 1.900 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201000800
TG-5006CE
16.369000 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201000900
TG-5006CE
19.200000 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201001000
TG-5006CE
26.000000 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201001300
TG-5006CE
16.367667 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201001700
TG-5006CE
26.000000 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201002000
TG-5006CE
26.000000 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
2.660 to 2.940 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201002300
TG-5006CE
26.000000 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
1.700 to 3.465 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201002500
TG-5006CE
32.000000 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201002600
TG-5006CE
26.000000 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
2.660 to 2.940 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201003200
TG-5006CE
20.000000 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
3.135 to 3.465 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201003300
TG-5006CE
25.000000 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004201006200
TG-5006CE
32.000000 MHz
3.20 x 2.50 x 0.90 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211000100
TG-5006CG
26.000000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.660 to 2.940 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211000200
TG-5006CG
26.000000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211000300
TG-5006CG
26.000000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211000400
TG-5006CG
16.368000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211000500
TG-5006CG
26.000000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
1.700 to 1.900 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211000600
TG-5006CG
16.367667 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-1.0 ppm
Clipped sine wave
X1G004211000800
TG-5006CG
16.369000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211001100
TG-5006CG
38.400000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211001500
TG-5006CG
16.369000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211001600
TG-5006CG
19.200000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211002700
TG-5006CG
30.000000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211003100
TG-5006CG
24.000000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.850 to 3.150 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211003300
TG-5006CG
49.999800 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
1.700 to 3.465 V
-30 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211003400
TG-5006CG
26.000000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
2.520 to 3.080 V
-40 to +85 °C
+/-2.0 ppm
Clipped sine wave
X1G004211003700
TG-5006CG
24.000000 MHz
2.50 x 2.00 x 0.80 mm
VC-TCXO~TCXO
1.700 to 3.465 V
-30 to +85 °C
+/-1.5 ppm
Clipped sine wave
